Travel Column APC / High Production

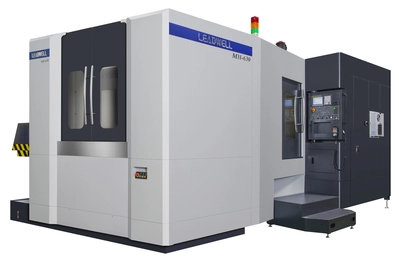

MODEL: MH-630
X axis travel: 1020 (40.2) mm(in)
Y axis travel: 850 (33.5) mm(in)
Z axis travel: 950 (37.4) mm(in)
Table size (L x W): 630x630(24.8x24.8) mm(in)
Max. table load: 1200 kg
Spindle speed: 8000 rpm
Rapid traverse X/Y/Z: 48/36/48 (1889/1417/1889) m/min/(ipm)
Tool storage capacity: 40 pcs
A.P.C number of pallets: 2 pcs
Spindle motor (30min) FANUC: 18.5 (24.7) a22/10000i kW (hp)
X/Y/Z axis feed motors: 6/6/7 (8/8/9.4) kW (hp)
Machine size (L x W x H): 6382/4700/3500 mm
Machine weight: 22500 kg
