Vertical / Heavy Duty

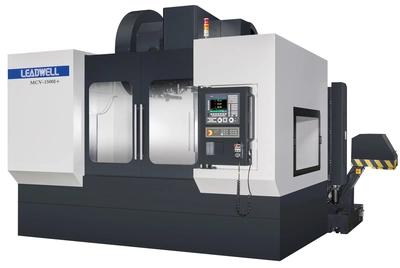

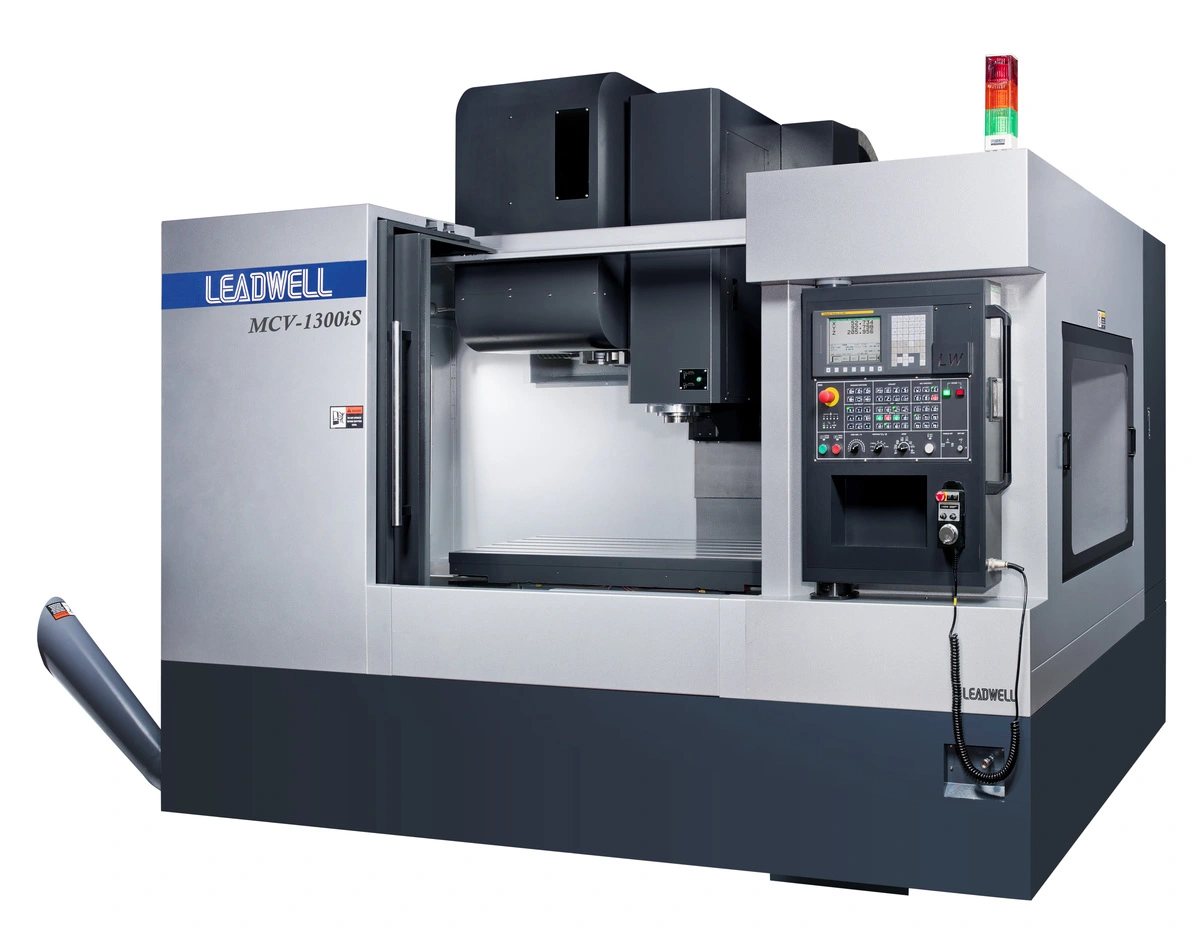

MODEL: MCV-1300i s
A.T.C: ARM
X axis travel: 1300 (52) mm(in)
Y axis travel: 635 (25) mm(in)
Z axis travel: 610 (24) mm(in)
Table size (L x W): 1420x610 (56x24) mm(in)
Max. table load: 1000 kg
Spindle speed: 4000 rpm
Rapid traverse X/Y/Z: 24/24/20(944.9/944.9/787) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 15/11 (20/14.7) kW (hp)
X/Y/Z axis motor: 4/4/7 (5.4/5.4/9.3) kW (hp)
Machine size (L x W x H): 3840x2200x2721 mm
Machine weight: 7000 kg
