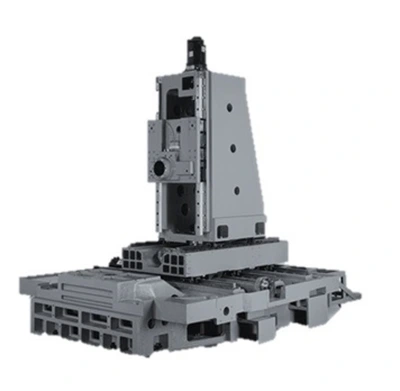

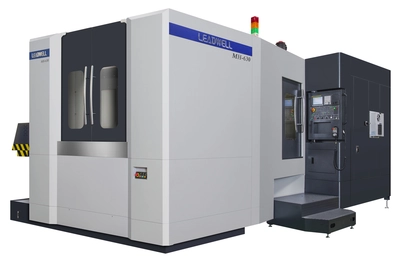

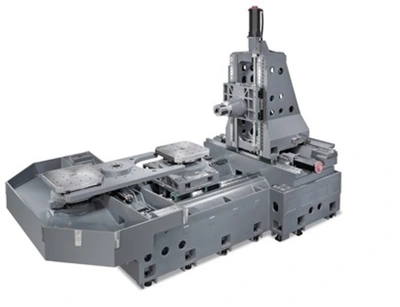

Travel Column APC / High Production
MODEL: MH-500i
X axis travel: 750 (29.5) mm(in)
Y axis travel: 650 (25.5) mm(in)
Z axis travel: 700 (27.5) mm(in)
Table size (L x W): 500x500 (19.6x19.6) mm(in)
Max. table load: 500 kg
Spindle speed: 6000 rpm
Rapid traverse X/Y/Z: 30/30/30 (1181/1181/1181) m/min/(ipm)
Tool storage capacity: 40 pcs
A.P.C number of pallets: 2 pcs
Spindle motor (30min) FANUC: 15(20) aP22/8000i kW (hp)
X/Y/Z axis feed motors: 4/4/4 (5.4/5.4/5.4) kW (hp)
Machine size (L x W x H): 5650x3600x2820 mm
Machine weight: 15000 kg
