Vertical / 5 Axes

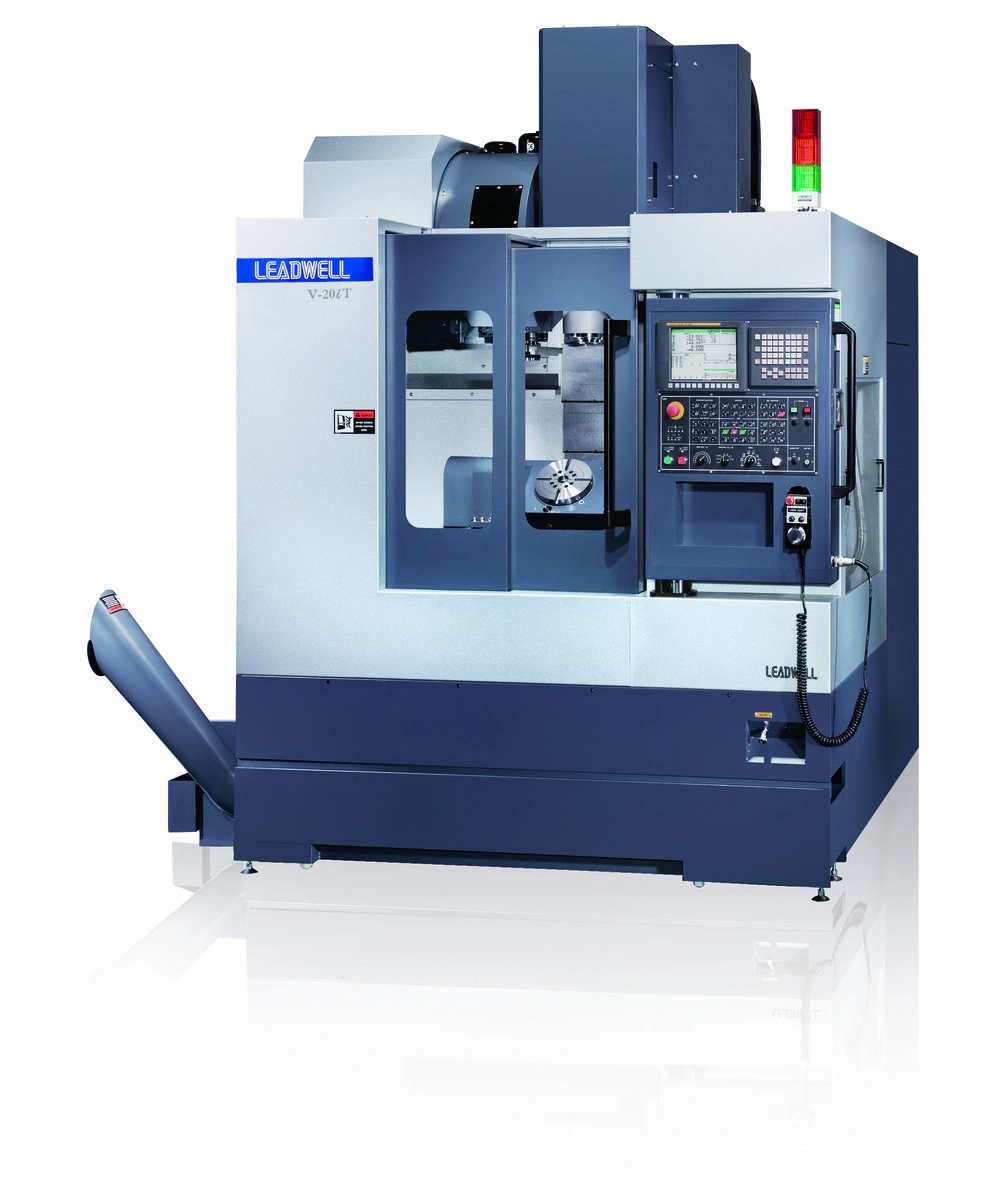

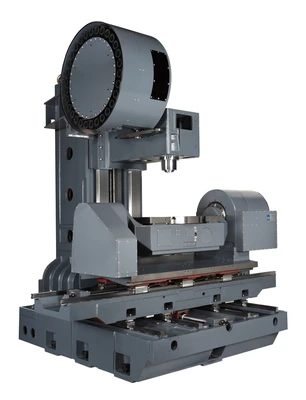

MODEL: V-20i T
A.T.C: ARM
X axis travel: 510 (20) mm(in)
Y axis travel: 410 (16) mm(in)
Z axis travel: 383 (15) mm(in)
Distance from table (pallet) to spindle end: 100-483 (3.9-19) mm(in)
Distance from column front to spindle center: 450 (17.7) mm(in)
Table size (L x W): Ø210 (Ø8.3) mm(in)
Max. table load: 75 kg
Spindle speed: 10000 rom
Rapid traverse: 36/36/36 (1417/1417/1417) m/min/(ipm)
Tool storage capacity: 24 pcs
Max. tool diameter (with adjacent tools): 80 (3.15) mm(in)
Max. tool diameter (without adjacent tools): 110 (4.3) mm(in)
Max. tool mass: 7 (15.4) mm(in)
Max. tool length: 250 (9.8) mm(in)
Tool change time (T/T): 3 sec
Tool change time (C/C): 6 sec
Spindle motor (30min) FANUC: 15 (20.1) kW (hp)
X/Y/Z axis motor: 3/3/4 (4/4/5.4) kW (hp)
Power requirements: 35 KVA
Machine size (LxWxH): 2700x2140x2620 mm
Machine weight: 5200 kg
