Travel Column APC / High Production

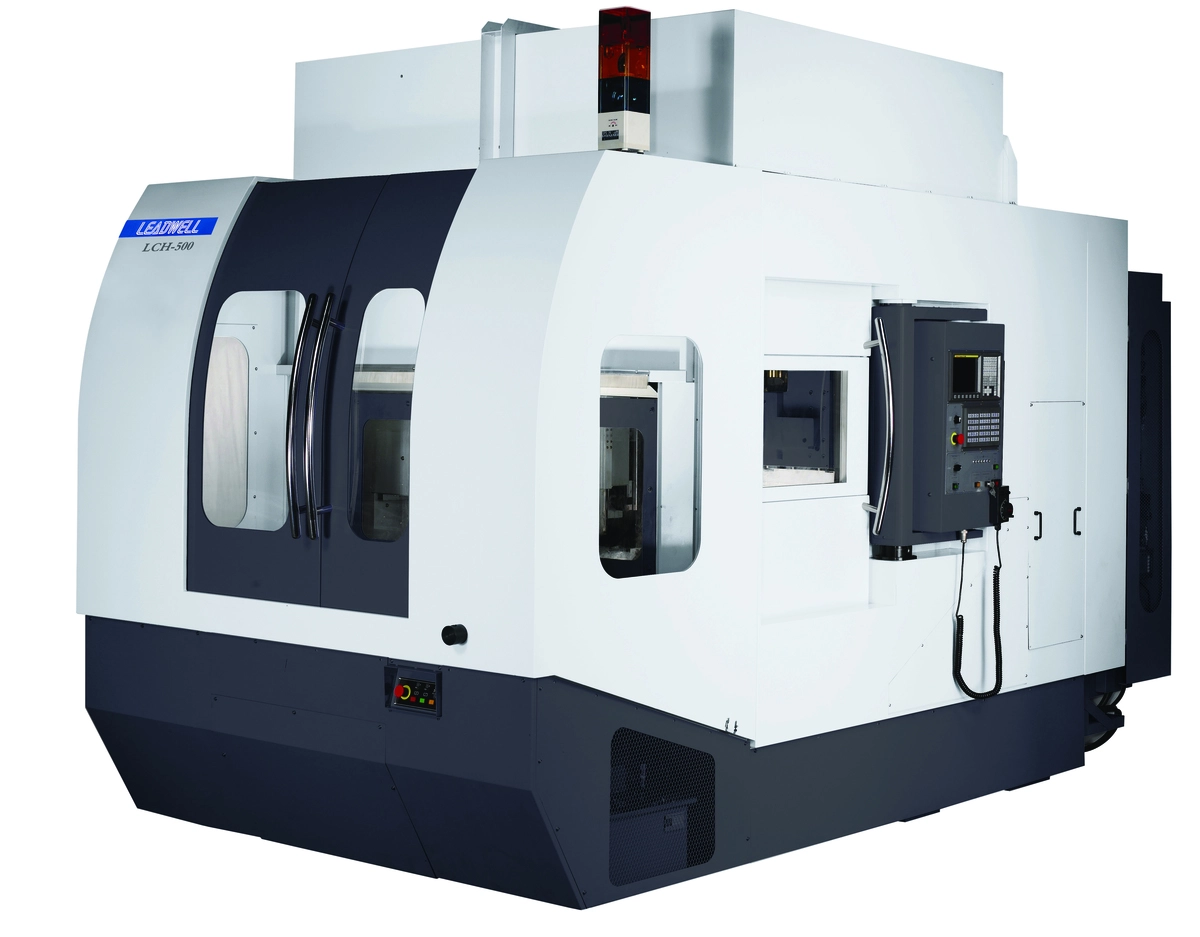

MODEL: LCH-500
X axis travel: 700 (27.5) mm(in)
Y axis travel: 610 (24) mm(in)
Z axis travel: 610 (24) mm(in)
Table size (L x W): 500x500 (19.6x19.6) mm(in)
Max. table load: 500 turn kg
Spindle speed: 10000 rpm
Rapid traverse X/Y/Z: 32/28/32 (1259/1102/1259) m/min/(ipm)
Tool storage capacity: 40 pcs
A.P.C number of pallets: 2 pcs
Spindle motor (30min) FANUC: 18.5 (24.8) kW (hp)
X/Y/Z axis feed motors: 7/4/4 (9/5.4/5.4) kW (hp)
Machine size (L x W x H): 3320x3800x2980 mm
Machine weight: 11500 kg
