VERTICAL / 5 AXES
[Specifications]

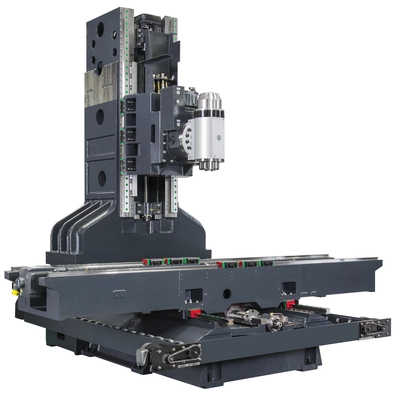

MODEL: BC-700
CAPACITY
X axis travel: 1300 (51.2) mm(in)
Y axis travel: 610 (24) mm(in)
Z axis travel: 610(24) VERTICAL 745(29.7)HORIZONTAL mm(in)
Distance from table top to spindle end: 110-720 (4.3-28.3) mm(in)
Distance from table top to spindle center: 231-976 (9.1-38.4) mm(in)
Distance from column front to spindle center: 691.5 (27.2) mm(in)
TABLE
Table size (LxW): Ø600(23.6) Rotary Table 1480x610(58.3x24) Table mm(in)
Max. table load: 400 Rotary Table 1600 Table kg
T-slot size: 18Tx100x5 mm(in)
SPINDLE
Spindle speed: 15000 rmp
Spindle nose (nominal size, NO.): 7/24 Taper, NO.40
Max. spindle torque: 95 (70) Nm(Ibw.ft)
FEED RATE
Rapid Traverse X/Y/Z: 36/36/30 (1417/1417/1182) m/min/(ipm)
Max. cutting feed rate: 10 (394) m/min/(ipm)
ATC
Tool Storage capacity: 30 pcs
Max. tool diameter (with adjacent tools): 85 (3.34) mm(in)
Max. tool diameter (without adjacent tools): 125 (4.92) mm(in)
MOTORS
Spindle motor (30min/cont): 18.5 (24.8) Kw (HP)
X/Y/Z axis motor: 7/7/7 (9.3/9.3/9.3) Kw (HP)
MACHINE SIZE
Height (H): 3450 (135.8) mm(in)
Floor space (LxW): 4710x4200 (185.4x156.4) mm(in)
Weight: 1300 Kg
Power requirements: 65 KVA
[Standard Accessories]
STANDARD ACCESSORIES
Full enclosure guarding
Chip conveyor (auger type)
Work light
Alarm lamp
Rigid tapping
Auto counter for work piece
Remote MPG
Surrounding coolant system
Linear scales
Chip conveyor outside machine with chip bucket
Air conditioner
Annular spindle coolant jet (arm type ATC)
Spindle oil chiller
[Optional Accessories]
10,000 rpm spindle
12,000 rpm spindle
CTS from A
Tool tip air blow system
Tool overload detection
Auto tool length measurement (ATLM)
Simple tool life management
Oil skimmer
Coolant gun
Through hole drill kit
DNC link software
CTS preparation
Extra coolant tank
ARM (40T) ATC
Auto door
Programmable nozzle
Programmable air blow
