Vertical / High Performance

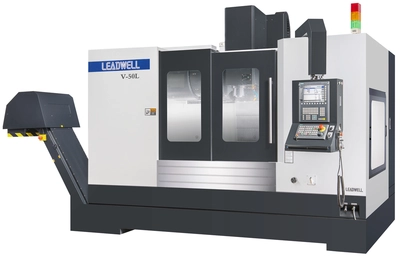

MODEL: V-50L
A.T.C: ARM
X axis travel: 1270 (50) mm(in)
Y axis travel: 635 (25) mm(in)
Z axis travel: 610 (24) mm(in)
Table size (L x W): 1420x610 (56x24) mm(in)
Max. table load: 1000 kg
Spindle speed: 10000,12000,15000 rpm
Rapid traverse X/Y/Z: 36 (1417) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 1020 (40.2) kW (hp)
X/Y/Z axis motor: 3/3/4 (4/4/5.4) kW (hp)
Machine size (L x W x H): 3840x2200x2721 mm
Machine weight: 7000 kg
