Vertical / High Performance

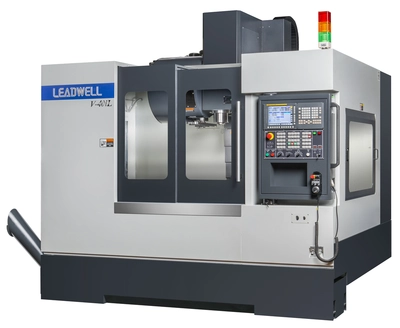

MODEL: V-40iL
A.T.C: ARM
X axis travel: 1020 (40.2) mm(in)
Y axis travel: 635 (25) mm(in)
Z axis travel: 610 (24) mm(in)
Table size (L x W): 1120x610 (44x24) mm(in)
Max. table load: 800 kg
Spindle speed: 10000,12000,15000 rpm
Rapid traverse X/Y/Z: 48/48/36 (1889/1889/1417) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 1020 (40.2) kW (hp)
X/Y/Z axis motor: 4 (5.4) kW (hp)
Machine size (L x W x H): 3420x2200x2721 mm
Machine weight: 6200 kg
