Vertical / Heavy Duty

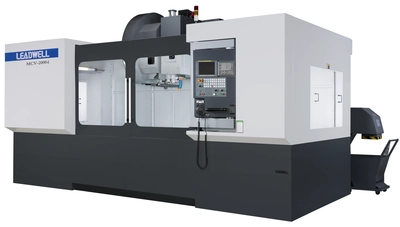

MODEL: MCV-2000i
A.T.C: ARM
X axis travel: 2040 (80.3) mm(in)
Y axis travel: 1000 (40) mm(in)
Z axis travel: 720 (28.3) mm(in)
Table size (L x W): 2100x1000 (72.7x40) mm(in)
Max. table load: 2000 kg
Spindle speed: 4000/6000 opt rpm
Rapid traverse X/Y/Z: 20/20/20 (787.4/787.4/787.4) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 11/15 (14.7/20.1) kW (hp)
X/Y/Z axis motor: 4/4/4 (5.4/5.4/5.4) kW (hp)
Machine size (L x W x H): 5466x4135x3006 mm
Machine weight: 14400 kg
