Vertical / High Performance

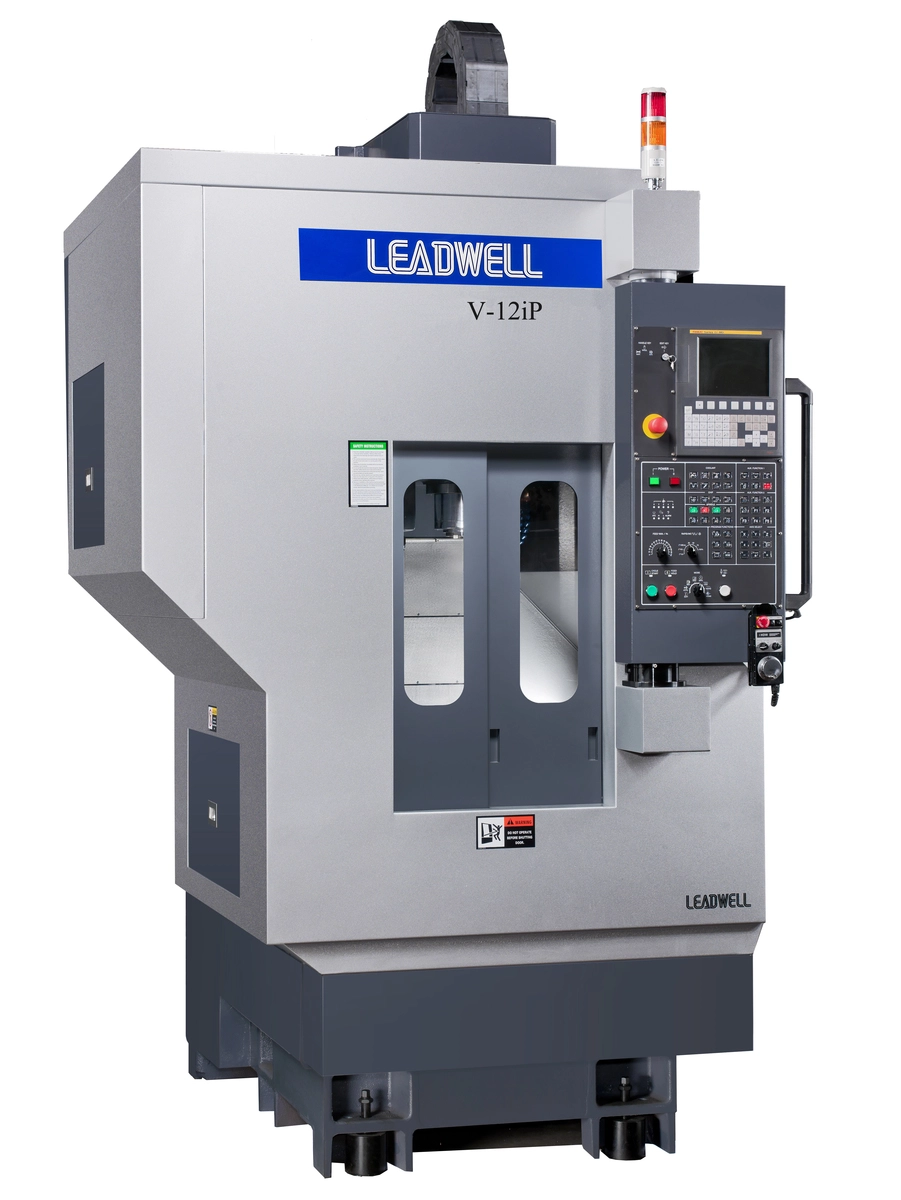

MODEL: V-12iP
A.T.C: ARM
X axis travel: 300 (11.8) mm(in)
Y axis travel: 410 (16) mm(in)
Z axis travel: 510 (20) mm(in)
Table size (L x W): 550x400 (21.6x15.7) mm(in)
Max. table load: 500 kg
Spindle speed: 10000,12000,15000 rpm
Rapid traverse X/Y/Z: 48/48/48 (1889/1889/1889) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 11 (14.7) kW (hp)
X/Y/Z axis motor: 1.6/3/4 (2/4/5.4) kW (hp)
Machine size (L x W x H): 1500x2600x2680 mm
Machine weight: 5000 kg
