Vertical / 5 Axes

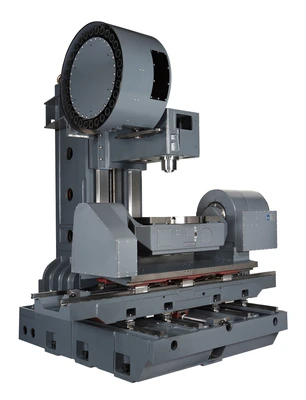

MODEL: V-40i T
A.T.C: ARM
X axis travel: 846 (33) mm(in)
Y axis travel: 635 (25) mm(in)
Z axis travel: 488 (19.2) mm(in)
Distance from table (pallet) to spindle end: 50-538 (1.9-21) mm(in)
Distance from column front to spindle center: 635 (25) mm(in)
Table size (L x W): Ø350 (Ø13.8) mm(in)
Max. table load: 200 kg
Spindle speed: 10000 rom
Rapid traverse: 36/36/36 (1417/1417/1417) m/min/(ipm)
Tool storage capacity: 24 pcs
Max. tool diameter (with adjacent tools): 80 (3.15) mm(in)
Max. tool diameter (without adjacent tools): 110 (4.3) mm(in)
Max. tool mass: 7 (15.4) mm(in)
Max. tool length: 250 (9.8) mm(in)
Tool change time (T/T): 1.8 sec
Tool change time (C/C): 4 sec
Spindle motor (30min) FANUC: 18.5 (24.8) kW (hp)
X/Y/Z axis motor: 3/3/4 (4/4/5.4) kW (hp)
Power requirements: 35 KVA
Machine size (LxWxH): 3840x200x2721 mm
Machine weight: 7000 kg
