Vertical / 5 Axes

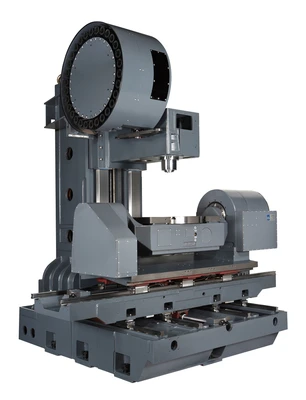

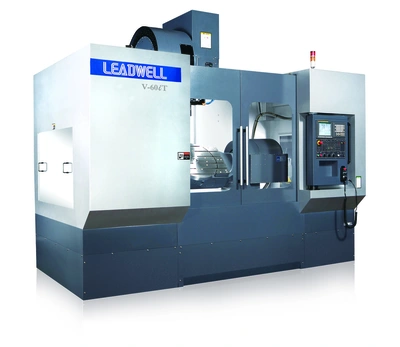

MODEL: V-60i T
A.T.C: ARM
X axis travel: 1270 (50) mm(in)
Y axis travel: 760 (30) mm(in)
Z axis travel: 680 (26.7) mm(in)
Distance from table (pallet) to spindle end: 100-780 (3.9-30.7) mm(in)
Distance from column front to spindle center: 825 (32.4) mm(in)
Table size (L x W): Ø630 (Ø24.8) mm(in)
Max. table load: 200 kg
Spindle speed: 10000 rom
Rapid traverse: 30/30/20 (1181/1181/787) m/min/(ipm)
Tool storage capacity: 24 pcs
Max. tool diameter (with adjacent tools): 3 mm(in)
Max. tool diameter (without adjacent tools): 110 (4.3) mm(in)
Max. tool mass: 7 (15.4) mm(in)
Max. tool length: 250 (9.8) mm(in)
Tool change time (T/T): 3 sec
Tool change time (C/C): 10 sec
Spindle motor (30min) FANUC: 26 (34.9) kW (hp)
X/Y/Z axis motor: 5.5/6/5.5 (7.3/8/7.3) kW (hp)
Power requirements: 60 KVA
Machine size (LxWxH): 3820/4365/3420 mm
Machine weight: 12500 kg
