Vertical / High Efficiency

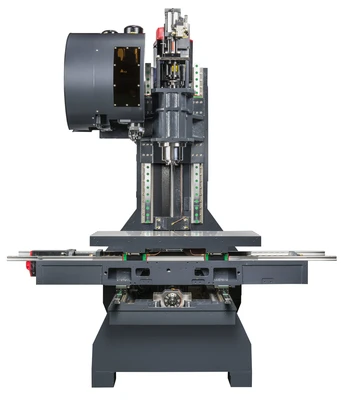

MODEL: V-30iF / iR
A.T.C: ARM
X axis travel: 800 (31.5) mm(in)
Y axis travel: 460 (18.1) mm(in)
Z axis travel: 510 (20.1) mm(in)
Table size (L x W): 860 x 450 (33.8 x 17.7) mm(in)
Max. table load: 250 kg
Spindle speed: 10000,12000 rpm
Rapid traverse X/Y/Z: 48 (1890) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 11 (14.7) kW (hp)
X/Y/Z axis motor: 1.6/3/3 (2.1/4/4) kW (hp)
Machine size (L x W x H): 2310x3050x2490 mm
Machine weight: 3500 kg
