FEATURES:
1. X, Y Axis & Ram Slide Way hardened and precision ground.
2. Head can swivel ±30 for slotting taper keyway.
3. Use AC- servo motor with high precision C3 ball screw for feeding purpose, best cutting accuracy and long life.
4. Program include auto tool relief function for best slotting surface and prolong tool’s life.
5. Built in automatic lubrication system to prevent wear.
Control Features:
1. Industrial PC base CNC control system, high compatibility and good stability.
2. Complete with standard international G.M code and friendly conversation program edit function.
3. Can maintain the control system or update the system software through the internet.
4. Complete with ladder and I/O diagnosis function, and modularized electric circuit system, Easy to maintain.
5. With MPG simulation function to help operator to test run the program avoiding crash accident.
6. Adopt CF memory card interface high stability and easily input/output program.
7. Standard language are Chinese and English, other language are available to develop.
[Specifications (Mechanism)]

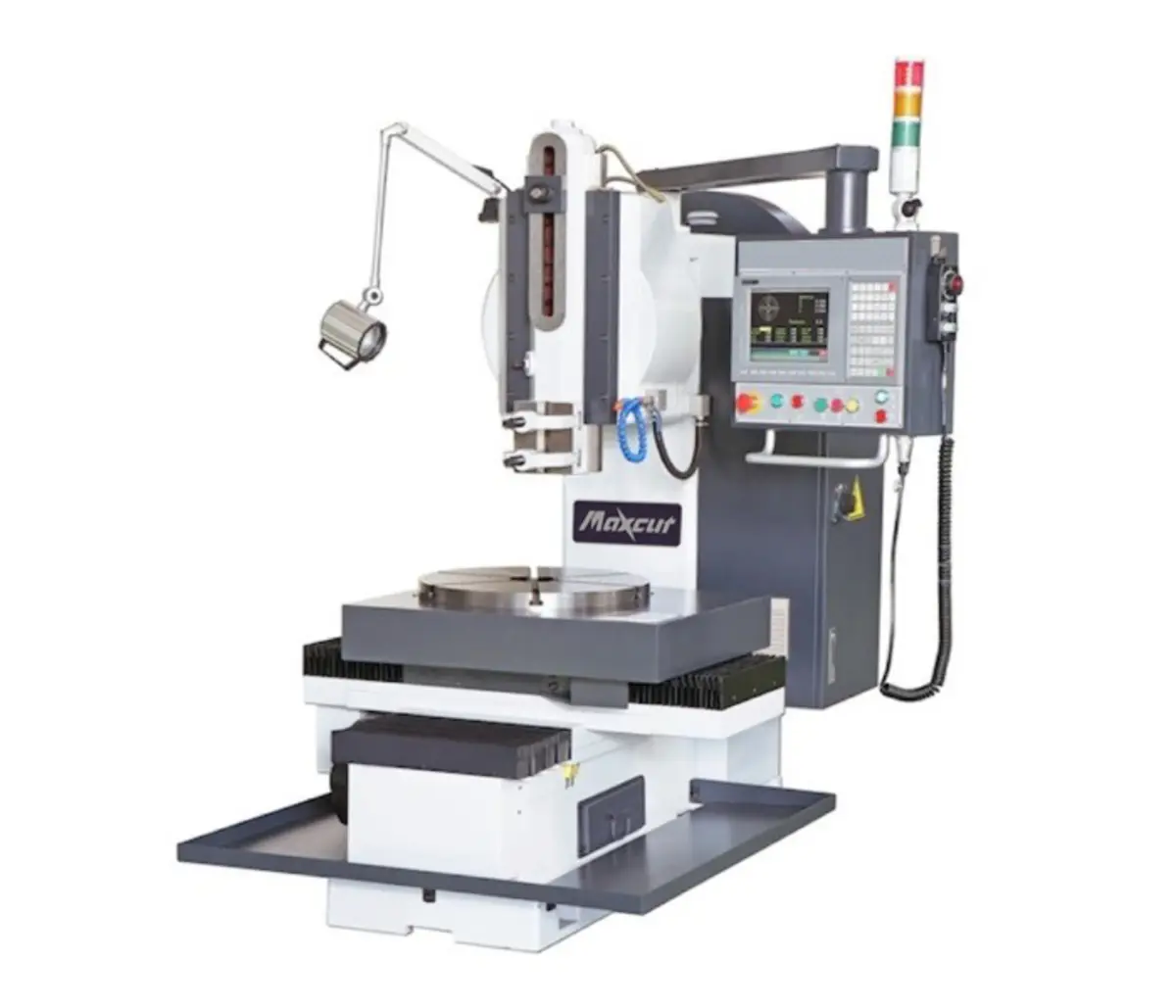

MODEL: CNC-300
Max. Travel of the ram (stroke): 300 (12”)
Vertical adjustment of ram: 320 (12.5”)
No. of stroke per minute (60HZ) spm.: L: 26-31-35-46 H: 53-62-73-93
No. of stroke per minute (50HZ) spm.: L: 22-26-31-39 H: 44-52-61-78
Swivel angle of head: ±30°
Distance between end of jam guideway and work table: 362 (14”)
Distance between tooling center and column surface: 510 (20”)
Diameter of working table: Ø560 (Ø22”)
Longitudinal travel of working table: 432 (17”)
Cross travel of working table: 432 (17”)
Main spindle motor (2 speeds brake motor): 5HP4P/3HP8P
Packing dimension: 2000x1300x2100 (80”x51”x83”)
Net weight: 1650KGS
[Specifications (CNC Control unit)]
Cutting feed rate of working table: 0.0001”-0.02”/stroke 0.001-0.5mm/stroke
X,Y Axis rapid traverse: 10m/min
Min indexing unit degree power: 0.001” (Auto)
X Axis servo motor power: 1kw
Y Axis servo motor power: 1kw
Rotary axis servo motor power: 1kw
[Accessories]
Standard Accessories: Optional Accessories
X,Y axis C3 ballscrews: Transformer
X, Y axis slideway covers: Mechanical Auto tool backing off device
Coolant system & tray: Slotting bar
Centralized automatic lubrication system: 3 jaws scroll chuck
MPG Handwheel: Clamping kits set
Halogen work light: CE standard
3 Color alarm light
Adjusting tools & box
