MAXCUT UNIVERSAL MILLING MACHINE
STANDARD FEATURES
Rapid traverse on "X", "Y" & "Z" axis.
Table swivels ±45° degrees left & right
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
Long Horizontal milling arbour
two over arm supports
manual drawbars
Coolant pump
Chip tray

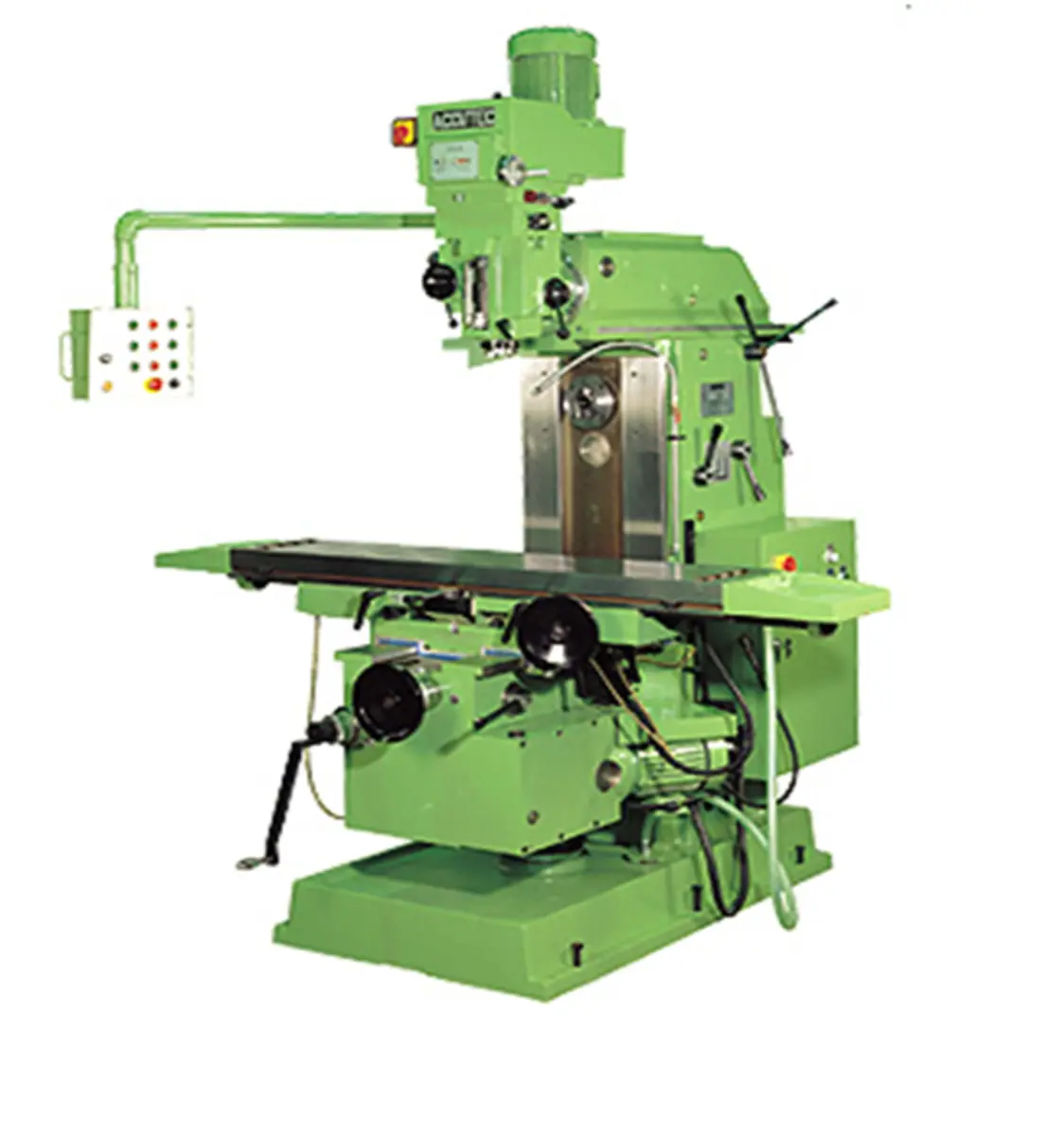

ITEM: MAXCUT 2500 QM
TABLE / Table area: 1500x350mm (59x13.7")
TABLE / Number of "T" shaped slots: 5-16H7
TABLE / Distance between "T" shaped slots: 60mm
TABLE / Rotary movement of table in both direction: 45°
TRAVERSE / Automatic Longitudinal: 1150mm (46")
TRAVERSE / Automatic cross: 400mm (15 3/4")
TRAVERSE / Automatic Vertical: 500mm (20")
TRAVERSE / Available distance from spindle to overarm: 155mm (6")
SPINDLE (horizontal) / Housing of the taper spindle: ISO-40/50
SPINDLE (horizontal) / Diameter of the main Shaft nose: 88.88-128.57mm
SPINDLE (horizontal) / Milling arbor diameter (*): 27mm or (1")
SPINDLE (horizontal) / Number of speeds of the spindle (R.P.M.): 12(40-1800) 50HZ
FEEDS / Longitudinal and cross feeds: 10-1208mm (0.4-47")
FEEDS / Vertical feed: 5-604mm (0.2-23")
RAPID TRAVERSE / Longitudinal and cross: 1208mm (47")/min (60HZ)
RAPID TRAVERSE / Vertical: 604mm (23")/min
MOTORS / Main motor HP: 7.5
MOTORS / Feed motor HP: 2.5
COOLANT: 1/8 (0.10) Cooling-pump HP
MOTORIZED OVERARM / Housing of the taper spindle: ISO-40/50
MOTORIZED OVERARM / Number of speeds: -
MOTORIZED OVERARM / Speed range (R.P.M): (35-1600) 50HZ
MOTORIZED OVERARM / Power HP: 5
WEIGHT AND DIMENSIONS / Maximum weight on table: 600kg (1320 lb)
WEIGHT AND DIMENSIONS / Net weight: 3200kg (7040 lb)
WEIGHT AND DIMENSIONS / Gross weight with seapacking case: 3400kg (7480 lb)
WEIGHT AND DIMENSIONS / Cubical measure of packing: 184x227x227cm (70x89x88")
