OPTIONS
MM-2S & MM-2VS:
1067 x 230 TABLE
Power Feed X or Y or Z axis AL-500S
MM-4S, MM-4VS & MM-4EVS:
5HP motor
1370 x 254 TABLE
Power Feed X or Y or Z axis AL-500S
NT#40 Spindle with Quill Dia. 100mm
COOLANT PUMP & CHIP TRAY
PENDANT STYLE OPERATOR BOX
MM-5VK:
Power Feed X or Y axis AL-500S

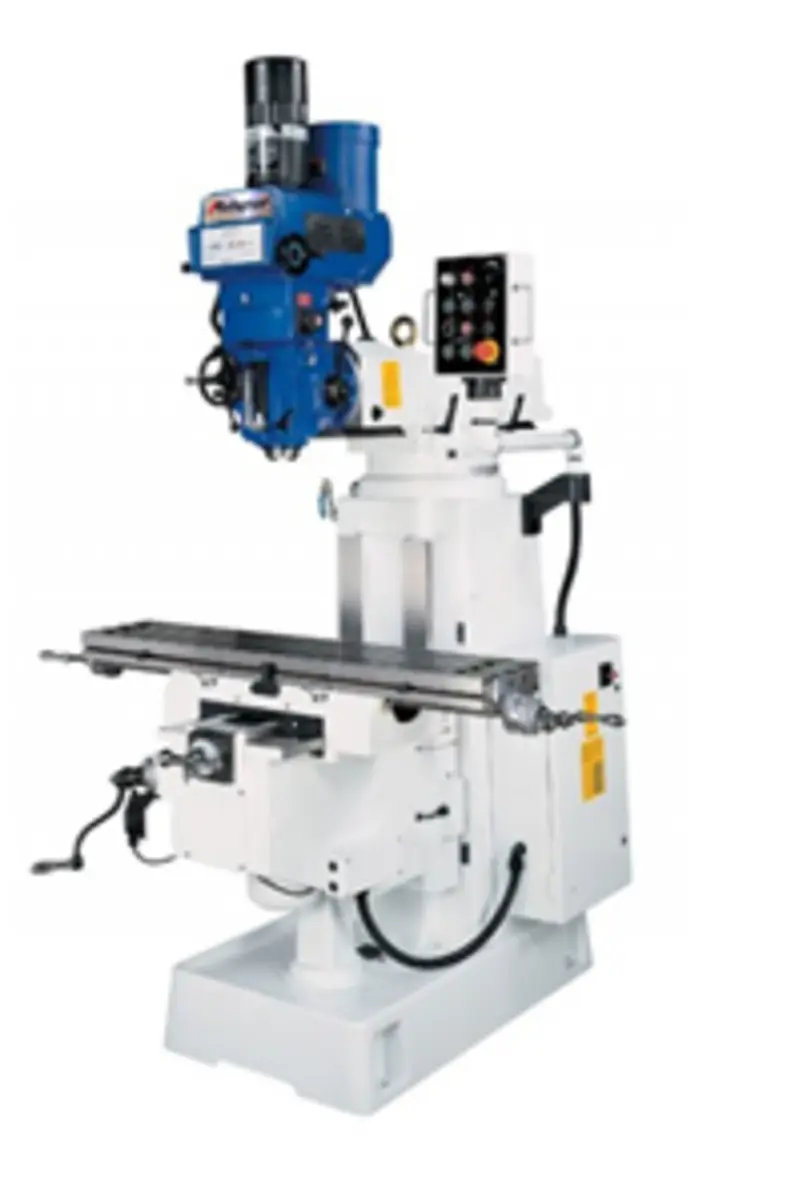

[ITEM | MM-2S]
TABLE / TABLE SIZE: 1067 x 230
TABLE / T SLOT (W X NO X PITCH): 16 x 3 x 63
TRAVEL / X Y Z - MANUAL: 725 x 305 x 406
TRAVEL / X Y Z - AUTO: 640 x 305 x 406
SPINDLE / SPINDLE NOSE: R8 OR N.S.T.30
SPINDLE / STEPS: 8
SPINDLE / SPINDLE SPEED Rpm: 80-2720
SPINDLE / SWIVELLING ANGLE: 45° (R&L)
SPINDLE / QUILL TRAVEL: 127
SPINDLE / QUILL FEEDS/REV: 0.04/0.08/0.15
SPINDLE / SPINDLE NOSE TO TABLE: 57 – 463
SPINDLE / SPINDLE CENTER TO COLUMN: 213 – 533
SPINDLE / CROSS TRAVEL OF RAM: 320
SPINDLE / HORIZONTAL ROTATION OF RAM: 360°
MOTOR / VERTICAL SPINDLE: 2HP-3P
MOTOR / COOLANT PUMP: 1/8 HP – 2P
SIZE / MACHINE (L x W x H): 1400 x 1450 x 2100
SIZE / NET WEIGHT (KGS): 900
