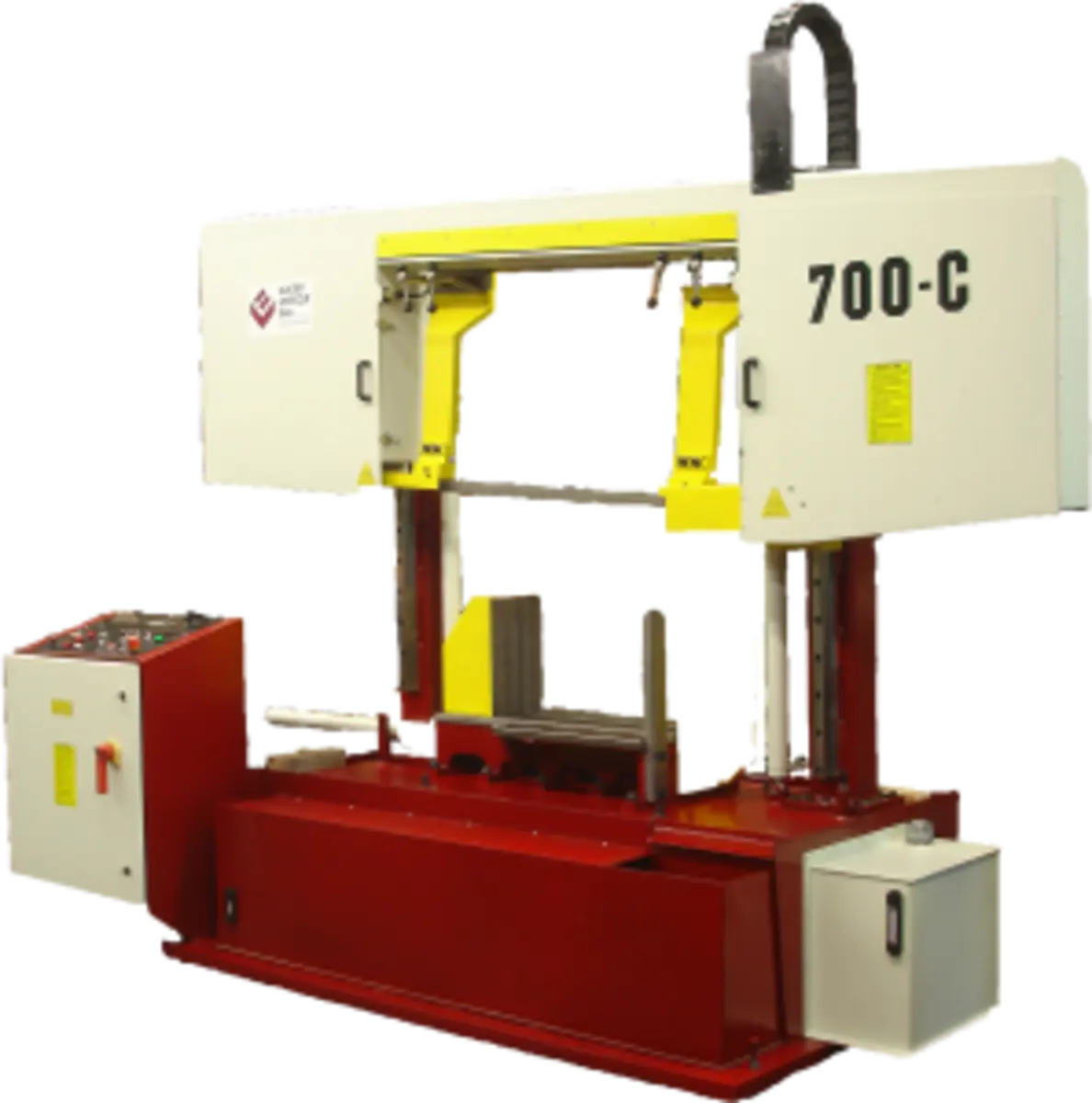

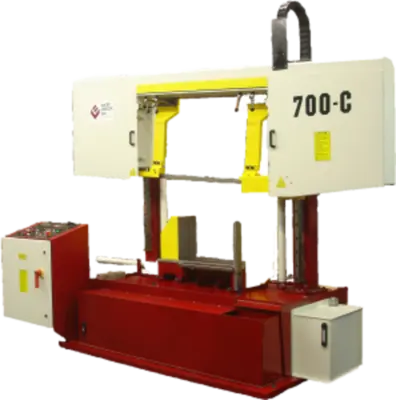

SEMI-AUTOMATIC HORIZONTAL BANDSAW
CUTTING CAPACITY
Round: 26″ (660 mm)
Rectangular: 25″ x 28″ (635 x 710 mm)
SPECIFICATIONS
Blade size: 1 1/2″ x 23′ (38 x 7010 mm)
Blade speeds (ft/min): 60 to 400 (18 to 122 m/min)
Blade tension (spring compensated): 25,000 psi
Table height: 30″ (760 mm)
Maximum work load: 6,500 lb. (2950 kg)
Machine weight: 6,700 lb. (3045 kg)
Overall dimensions: 135″ x 94″ x 98″ (3430 x 2390 x 2490 mm)
DRIVE
Blade drive: 10 Hp (7.5 kW)
Hydraulic drive: 2 Hp (1.5 kW)
Voltages available (three phase): 575, and 460
