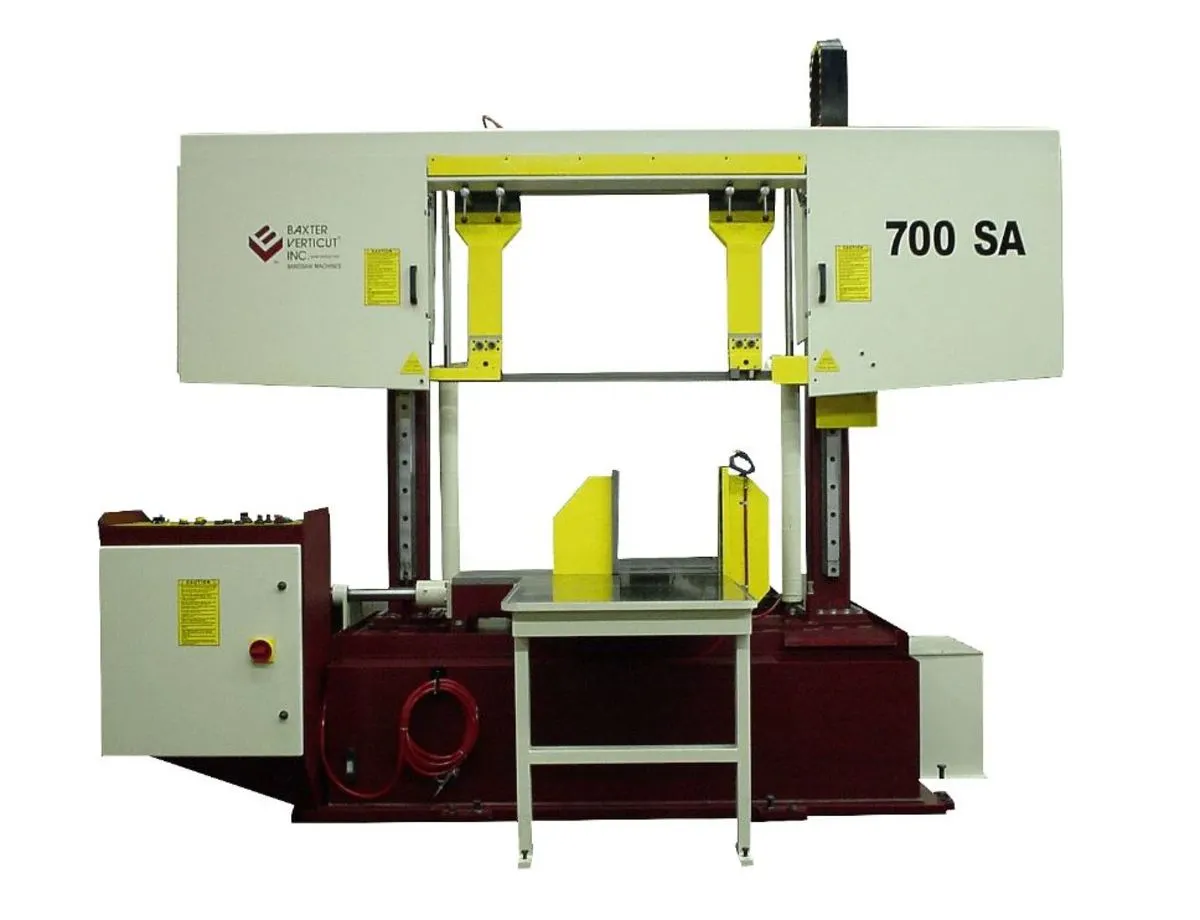

SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 700SA has a large capacity and uses an economical 1½” (41mm) blade.
The split vise clamps on both sides of the blade. Machine is ideal for service centers and pipe cutting.
CUTTING CAPACITY
Round: 27 1/2″ (700 mm)
Square: 27 1/2″ (700 mm)
SPECIFICATIONS
Blade Size: 1 1/2″ x 23′ (41 x 7010 mm)
Blade Speeds: 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 27″ (686 mm)
Maximum Work Load: 6,500 lb. (2950 kg)
Machine Weight: 4,500 lb. (2045 kg)
Overall Dimensions: 12′ x 5′ x 7′ (3650x1520x2130 mm)
DRIVE
Blade Drive: 10 Hp (7.5 kW)
Hydraulic Drive: 2 Hp (1.5 kW)
Voltages available (three phase): 575 and 460
