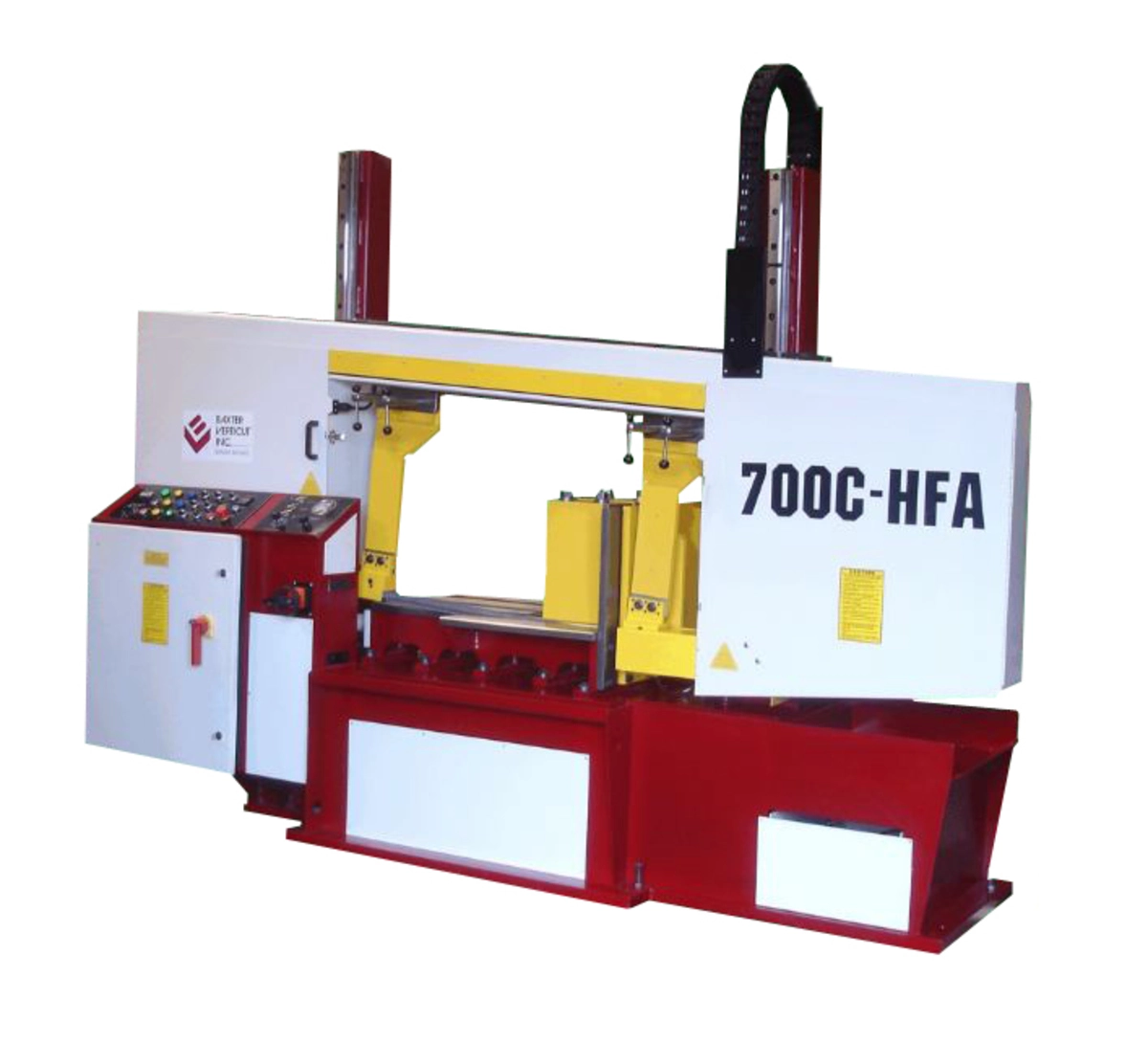

FULLY AUTOMATIC HORIZONTAL BANDSAW
CUTTING CAPACITY
Round at 90 degrees: 26″ (660 mm)
Rectangular: 25″ x 28″ (635 x 710 mm)
SPECIFICATIONS
Blade size: 1 1/2″ x 23′ (41 x 7010 mm)
Blade speeds (ft/min): 60 to 400 (18 to 122 m/min)
Blade tension (spring compensated): 25,000 psi
Table height: 30″ (686 mm)
Maximum work load: 12,000 lb. (5450 kg)
Machine weight: 8,700 ln/ (4400 kg)
Overall dimensions: 128″ x 97″ (3250 x 2460 x 2500 mm)
DRIVE
Blade drive: 10 Hp (7.5 kW)
Hydraulic drive: 3 Hp (2.25 kW)
Voltages available (three phase): 575, 460 / 3 phase / 60 Hz
