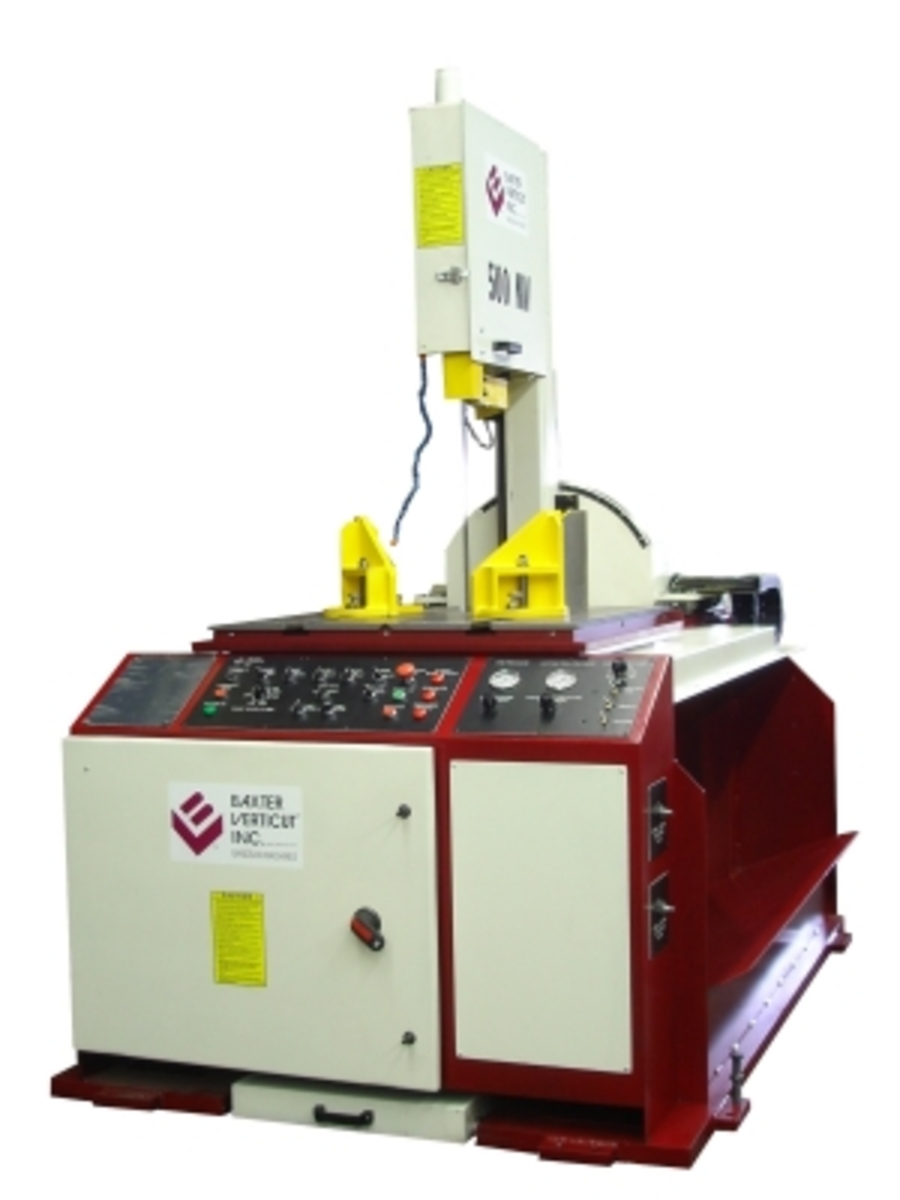

MITERING/VERTICAL BANDSAW

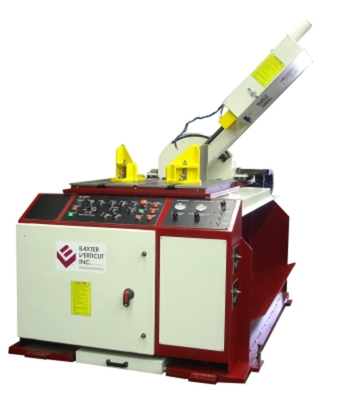

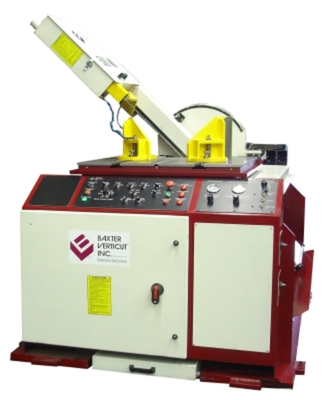

The model 500MV miters 45 degrees left and right. Additionally the two sets of vises pivot making it possible to cut compound angles.
The machine has a high efficiency planetary gearbox. Hydraulically actuated movement of the saw head tilt, full stroke vises and top blade guide arm.
CUTTING CAPACITY
Round at 90 degrees: 18” (457 mm)
Round at 45 degrees: 18” (457 mm)
Rectangular at 90 degrees: 18” x 25” (457 mm x 635 mm)
SPECIFICATIONS
Blade Size: 1 ¼” x 16’6” (34 mm x 5030 mm)
Blade Speeds (ft/min): 80 to 450 (24 to 135 m/min)
Blade Tension (spring compensated): 25,000 psi (172 MPa)
Blade Guides: Carbide with rollers
Table Height: 38” (965 mm)
Maximum Work Load: 6,000 lb. (2700 kg)
Machine Weight: 5000 lb. (2188 kg)
Overall Dimensions: 118 ¾” x 64” x 101” (3016x1626x2564mm)
DRIVE
Blade Drive: 7 ½” Hp (5.6kW)
Hydraulic Drive: 3 Hp (2.25 kW)
Voltage (three phase): 575/460
