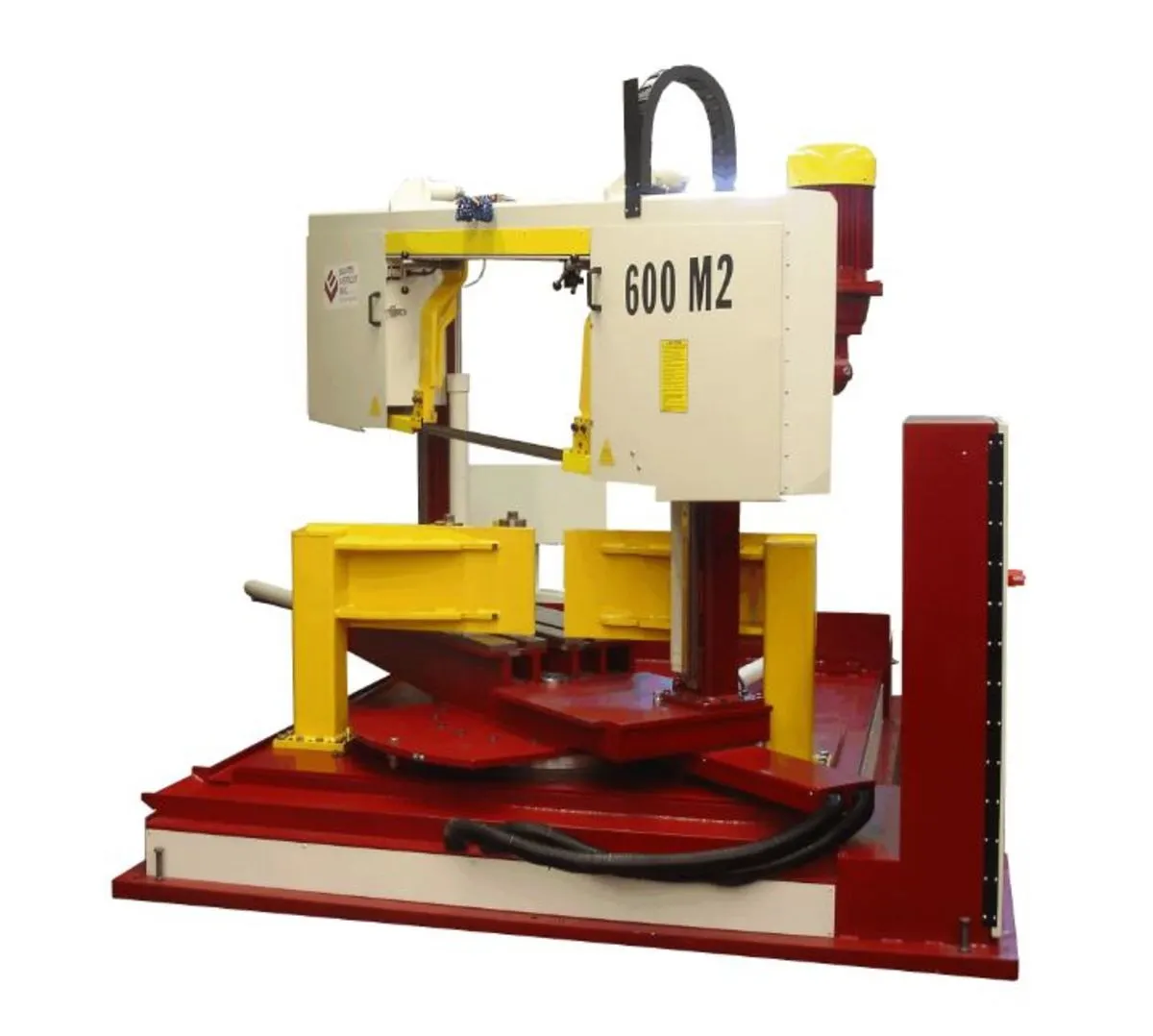

HORIZONTAL DOUBLE COLUMN MITERING BANDSAW
CUTTING CAPACITY
Round: 24″ (610 mm)
Rectangular: 20″ x 30″ (510 x 760 mm)
Rectangular at 45 degrees: 17″w x 20″h (445 mm x 510 mm)
Rectangular at 60 degrees: 10″w x 20″h (255 mm x 510 mm)
SPECIFICATIONS
Blade size: 1 1/2″ x 22″ (41 x 6705 mm)
Blade speeds (ft/min): 70 to 400 ft/min (21 to 122 m/min)
Blade tension (hydraulic): 25,000 psi
Blade guides: Carbide with rollers
Table height: 26 1/4″ (665 mm)
Maximum work load: 10,000 lb. (4545 kg)
Machine height: 9,000 lb. (4090 kg)
Overall dimensions: 12″x12″x7″ (3660x3660x2150 mm)
DRIVE
Blade drive: 10 Hp (7.5kW)
Hydraulic drive: 3 Hp (2.2kW)
Voltages available (three phase): 575 and 460
