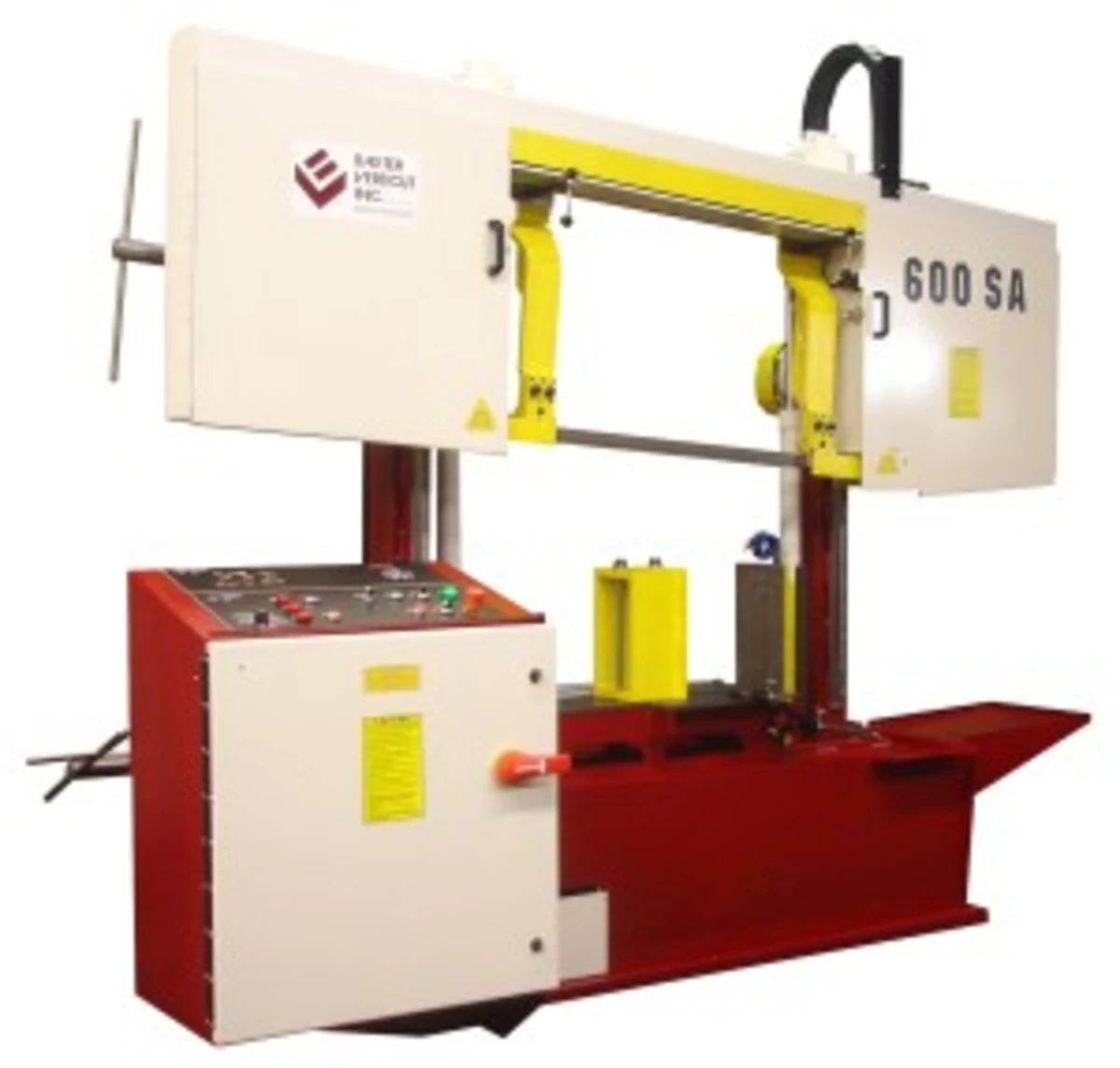

SEMI-AUTOMATIC HORIZONTAL BANDSAW
CUTTING CAPACITY
Round: 24″ (610 mm)
Rectangular: 22″ x 28″ (560 x 710 mm)
SPECIFICATIONS
Blade size: 1 1/2″ x 20′ (41 x 6096 mm)
Blade speeds (ft/min): 60 to 360 ft/min (18 to 110 m/min)
Blade tension (hydraulic): 25,000 psi
Blade guides: Carbide with rollers
Table height: 26 1/4″ (665 mm)
Maximum work load: 6,000 lb. (2700 kg)
Machine weight: 4,100 lb. (1860 kg)
Overall dimensions: 119″ x 64″ x 84″ (3020 x 1620 x 130 mm)
DRIVE
Blade drive: 7.5 Hp (5 kW)
Hydraulic drive: 1 Hp (2.2 kW)
Voltages available (three phase): 575, and 460
