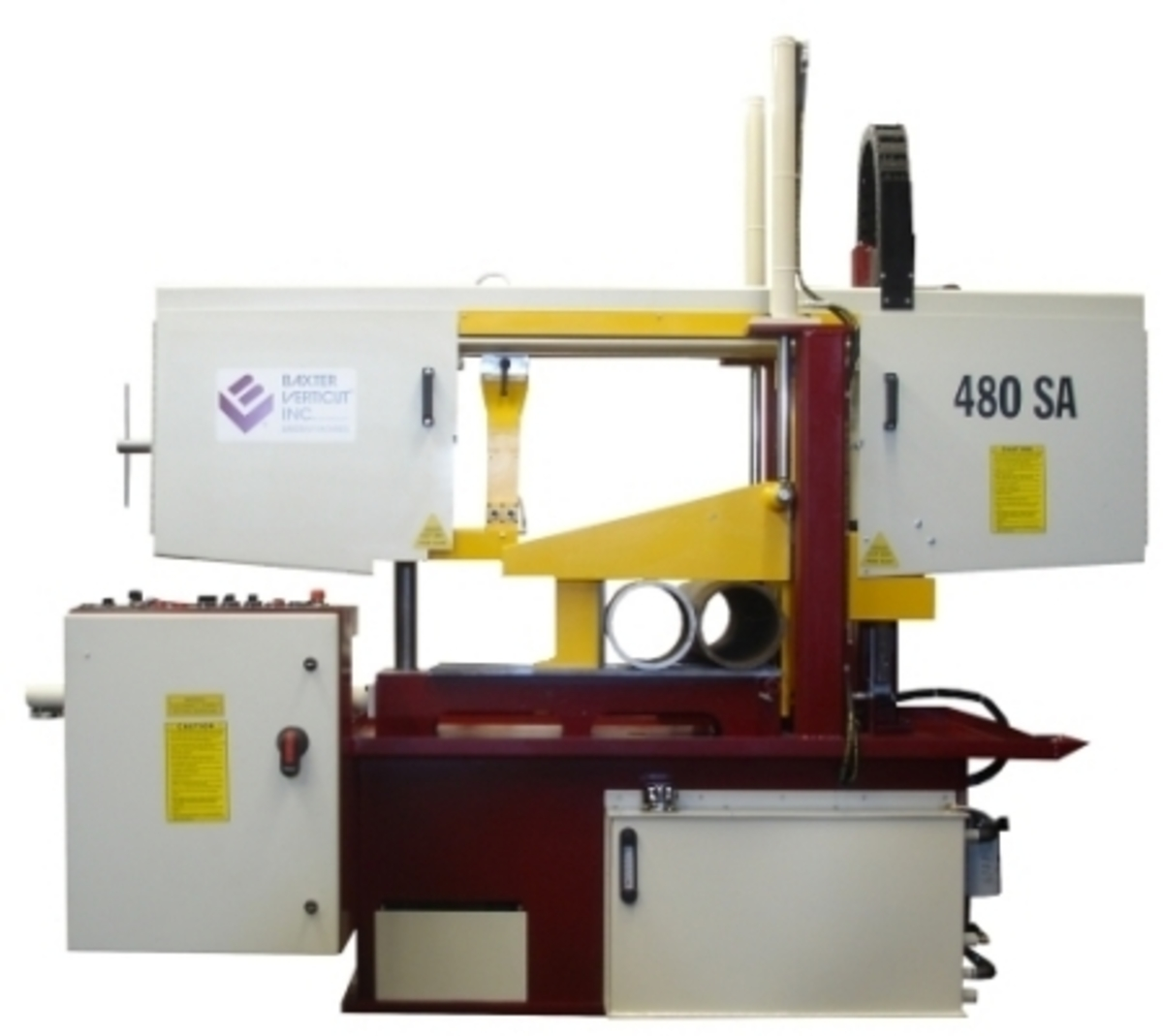

HEAVY DUTY SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 480SA is ideal for bundle cutting. The machine has a split vise which clamps on both sides of the blade.
There are front and rear vertical vises to securely clamp bundles of material or to allow the machine to be fed from the front or rear.
CUTTING CAPACITY
Round: 18″ (475 mm)
Rectangular: 18″ x 25″ (475 x 635 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 16′ 5″ (34 x 5000 mm)
Blade Speeds (continuously variable): 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (670 mm)
Maximum Work Load: 4,500 lb. (2050 kg)
Machine Weight: 2,500 lb. (1130 kg)
Overall Dimensions: 108”x60”x96”(2740x1525x2440mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 2 Hp (1.5 kW)
Voltages available (three phase): 575, 460 and 230
