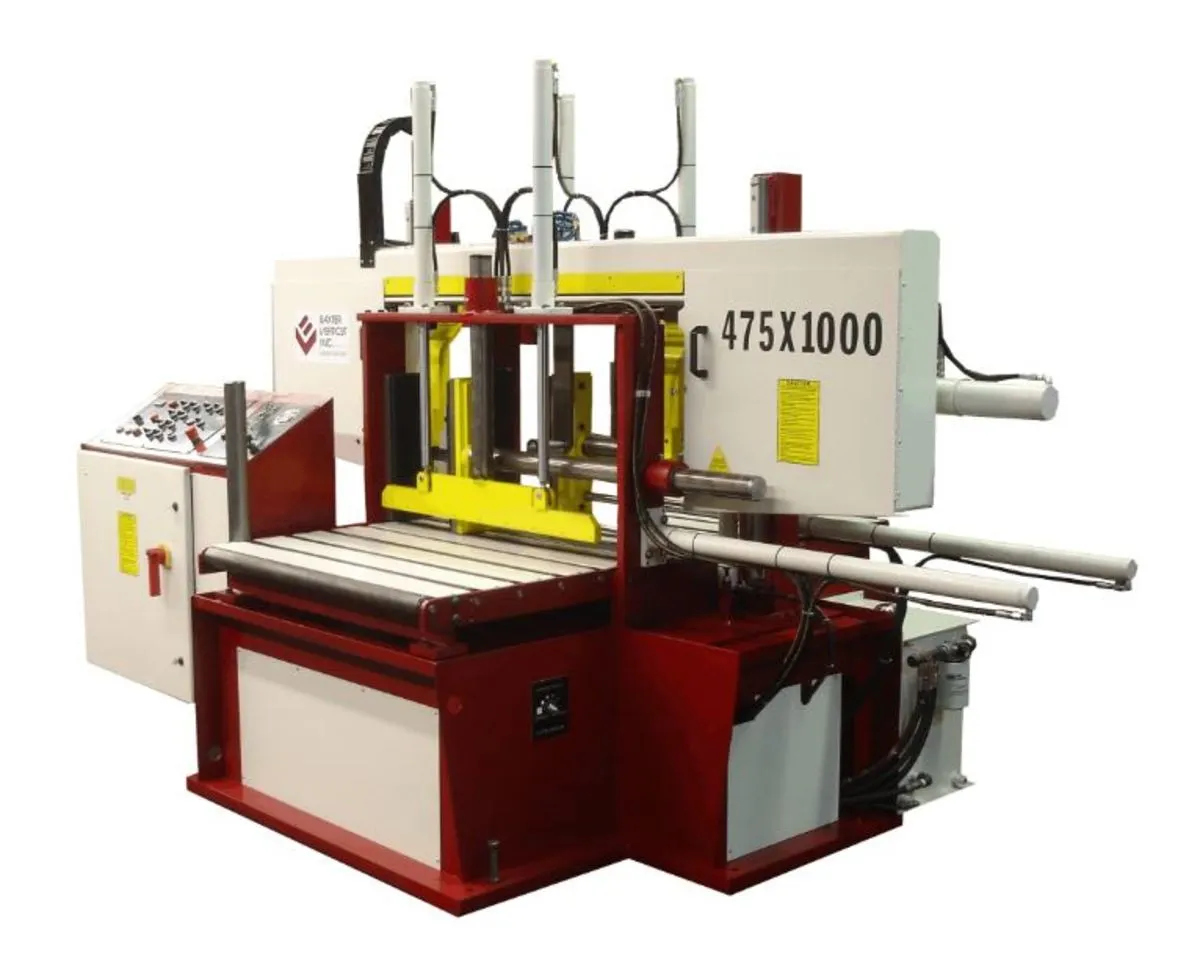

SEMI-AUTOMATIC HORIZONTAL BANDSAW
CUTTING CAPACITY
Round: 18″ (460 mm)
Rectangular: 18″ x 36″ (460 x 915 mm)
SPECIFICATIONS
Blade Size: 1 1/2″ x 18′ 8″ (38 x 5690 mm)
Blade Speeds (ft/min): 60 to 400 (18 to 122 m/min)
Blade Tension (spring compensated): 25,000 psi
Table Height: 30″ (760 mm)
Maximum Work Load: 7,000 lb. (3180 kg)
Machine Weight: 6,300 lb. (2860 kg)
Overall Dimensions: 132″ x 74″ x 83″ (3325 x 1880 x 2110 mm)
DRIVE
Blade Drive: 7.5 Hp (6 kW)
Hydraulic Drive: 2 Hp (2.25 kW)
Voltages Available (three phases): 575, and 460
