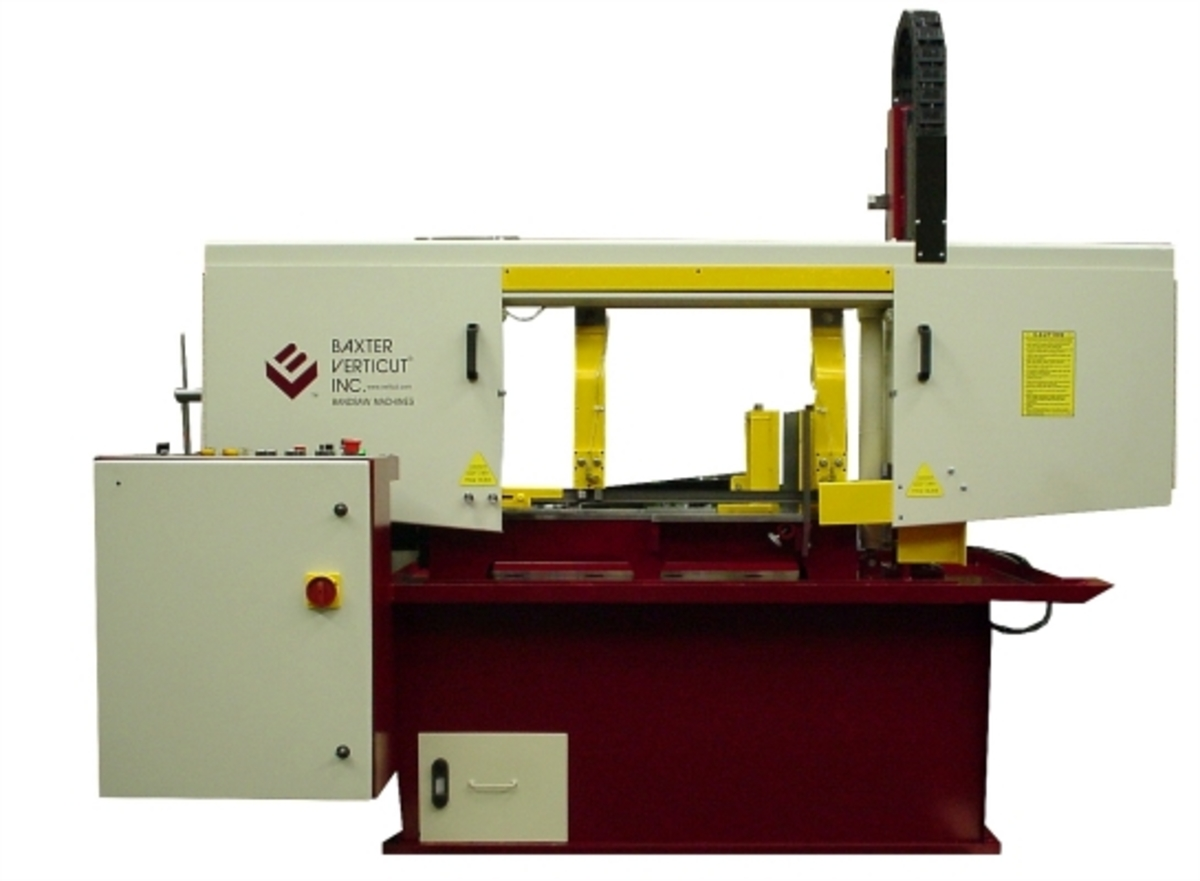

SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 475SA has a large capacity for cutting structural profiles and pipes.
Uses a 1¼” (34mm) blade drive by a 5 hp (3.75 kW) motor. Drive system is a high efficiency planetary gearbox and a directly mounted motor (no belts).
Speed is variable controlled by a variable frequency drive.
CUTTING CAPACITY
Round: 18″ (475 mm)
Round at 45 degrees: 13 3/8″ (340 mm)
Rectangular: 18″ x 25″ (475 x 635 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 16′ 5″ (34 x 5000 mm)
Blade Speeds (continuously variable): 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (670 mm)
Maximum Work Load: 4,500 lb. (2050 kg)
Machine Weight: 2,400 lb. (1090 kg)
Overall Dimensions: 9′ x 5′ x 8′(2750 x 1500 x 2400 mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 1 Hp (.75 kW)
Voltages available (three phase): 575, 460, 230 and 208
