HEAVY DUTY SEMI-AUTOMATIC HORIZONTAL BANDSAW

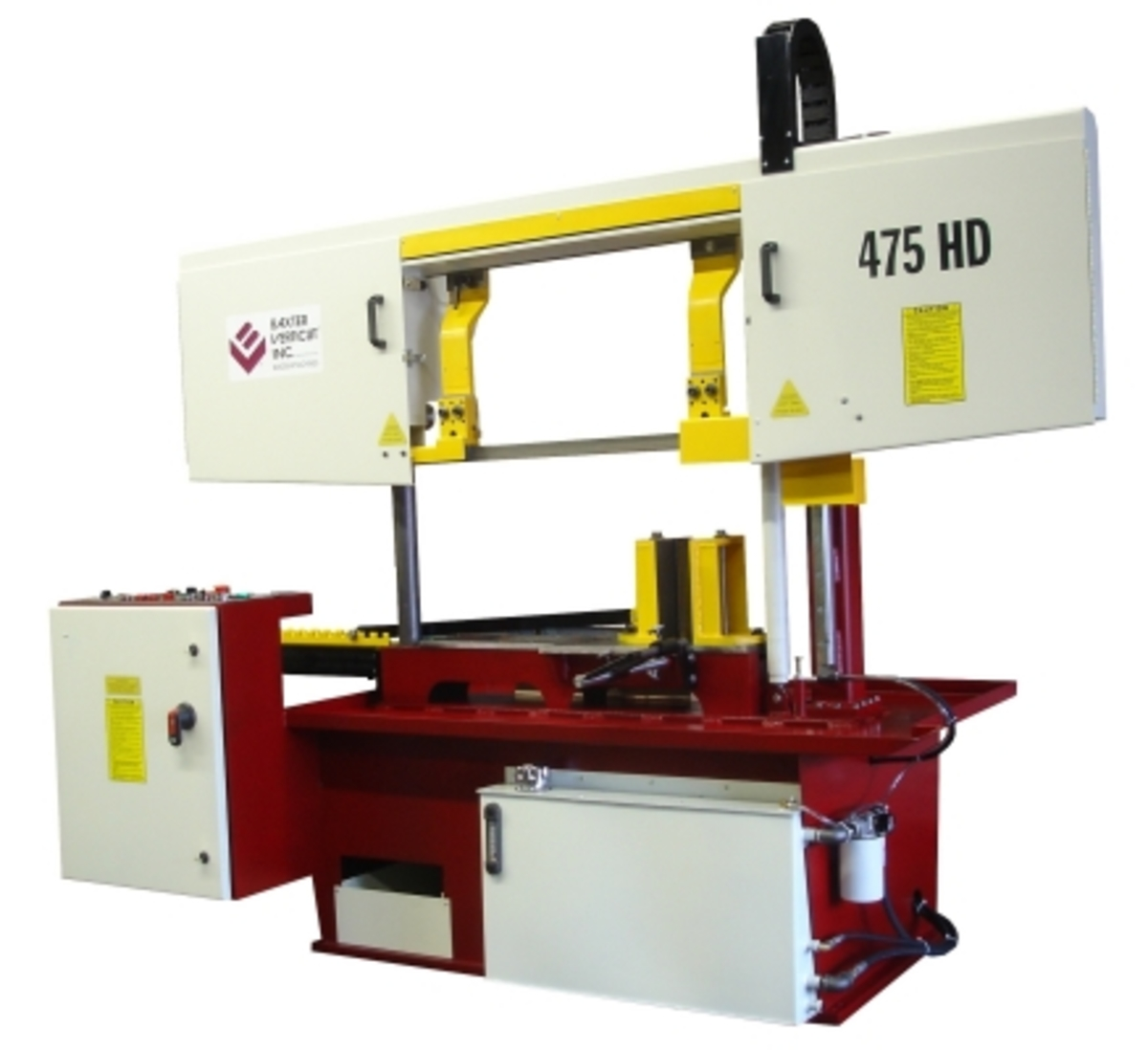

The model 475HDP is ideal for cutting solids. The machine has a large 1½” (41mm) blade driven by a 7½ hp (5 kW) motor. Full stroke hydraulic vise is standard.
CUTTING CAPACITY
Round: 18″ (475 mm)
Round at 45 degrees: 13 3/8″ (340 mm)
Rectangular: 18″ x 25″ (475 x 635 mm)
SPECIFICATIONS
Blade Size: 1 1/2″ x 17′ 5″ (41 x 5309 mm)
Blade Speeds (continuously variable): 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (670 mm)
Maximum Work Load: 4,500 lb. (2050 kg)
Machine Weight: 2,800 lb. (1090 kg)
Overall Dimensions: 9’6”x5’x8′(2895x1500x2400 mm)
DRIVE
Blade Drive: 7.5 Hp (5 kW)
Hydraulic Drive: 1 Hp (.75 kW)
Voltages available (three phase): 575 or 460
