SEMI-AUTOMATIC DOUBLE COLUMN HORIZONTAL BANDSAW

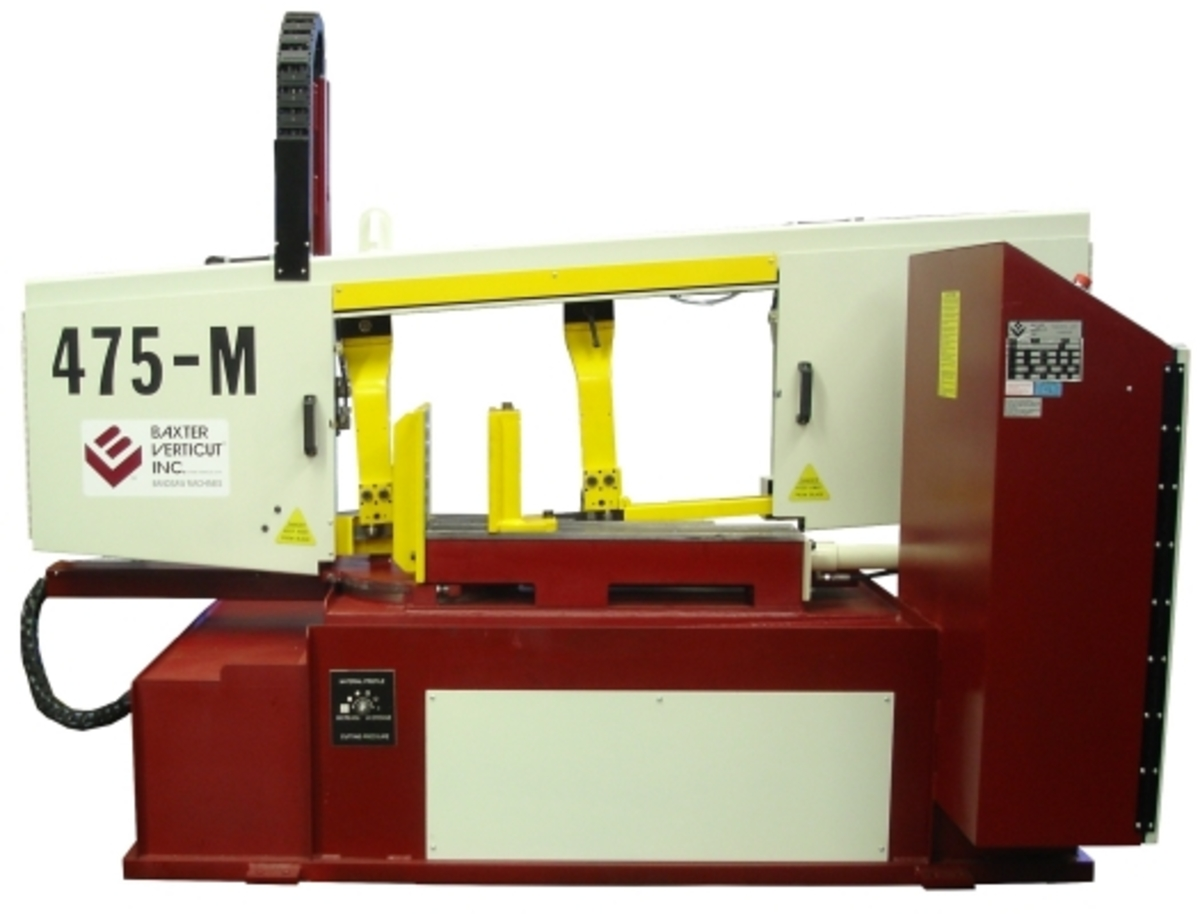

The model 475M has a large capacity for cutting structural profiles and pipes.
Head miters out to 60 degrees by hydraulics with a digital angle display. The blade is canted at 4 degrees to aid in cutting structural profiles and flats.
CUTTING CAPACITY at 0°
Round at 0°: 18″ (460 mm)
Rectangular at 0°: 17¼”H x 25½”W (438 x 648 mm)
Rectangular (maximum height) at 45°: 17¼”H x 15¾”W (438 x 400 mm)
Rectangular (maximum width) at 45°: 13”H x 18½”W (330 x 470 mm)
Rectangular (maximum height) at 60°: 17¼”H x 9½”W (438 x 241 mm)
Rectangular (maximum width) at 60°: 14½”H x 11¼”W (368 x 285 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 16′ 6″ (34 x 5030 mm)
Blade Speeds (continuously variable): 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (670 mm)
Maximum Work Load: 5,000 lb. (2050 kg)
Machine Weight: 2,800 lb. (1090 kg)
Overall Dimensions: 9′ x 5′ x 8′(2750 x 1500 x 2400 mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 2 Hp (.75 kW)
Voltages available (three phase): 575, 460, 230 and 208
