FULLY AUTOMATIC HORIZONTAL BANDSAW

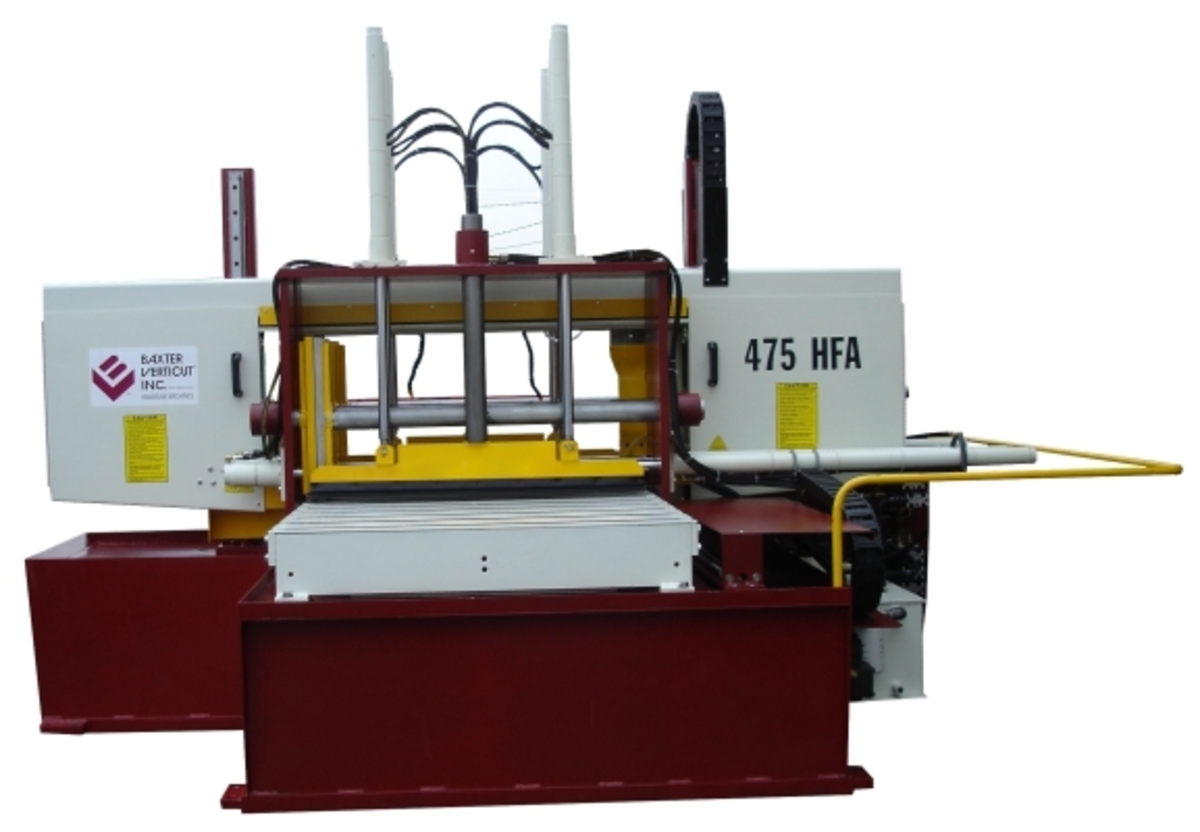

The model 475HFA is a fully automatic bandsaw. This machine can cut solids and grating. It has an extra large capacity of 18” (460mm) x 36” (915mm).
Machine can cut solids using a large 1½” (41mm) blade driven by a 7½ hp (5 kW) motor.
CUTTING CAPACITY
Round: 18″ (460 mm)
Rectangular: 18″ x 36″ (460 x 915 mm)
SPECIFICATIONS
Blade Size: 1 1/2″ x 18′ 8″ (38 x 5690 mm)
Blade Speeds (ft/min): 60, to 400 (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (660 mm)
Maximum Work Load: 7,000 lb. (3180 kg)
Machine Weight: 5,200 lb. (1900 kg)
Overall Dimensions: 119”x88”x80” (3020x2235x2030 mm)
DRIVE
Blade Drive: 10 Hp (7.5 kW)
Hydraulic Dive: 3 Hp (2.25 kW)
Voltages available (three phase): 575, and 460
