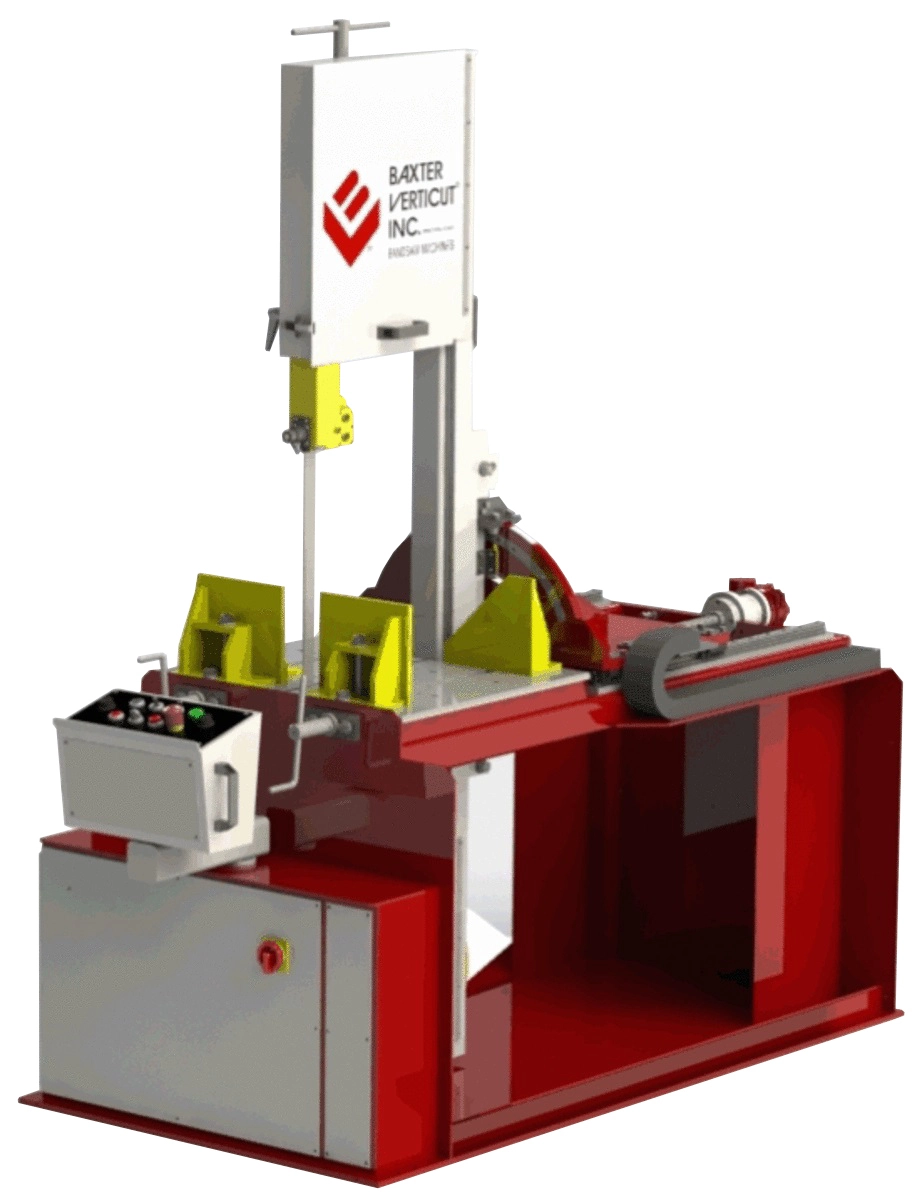

MITERING VERTICAL BANDSAW
CUTTING CAPACITY
Round at 90 degrees: 14″
Round at 45 degrees: 12 3/4″
Rectangular: 14″ X 17″
SPECIFICATIONS
Blade Size: 1 1/4″ X 4’6″
Blade Speed (ft/min): 60 to 400
Feed Rate: .5 to 40 inches per minute
Blade Tension (spring compensated): 25,000 psi
Table Height: 34 1/2″
Maximum Work Load: 2,000 lb.
Machine Weight: 1,600 lb.
Overall Dimensions: 88″ X 46″ X 86″
DRIVE
Bade Drive: 5 Hp
Feed Drive: 1 Hp
Voltages Available (three phase): 460/3/60 standard208, 230, 573/3/60 and 220/1/60 available
