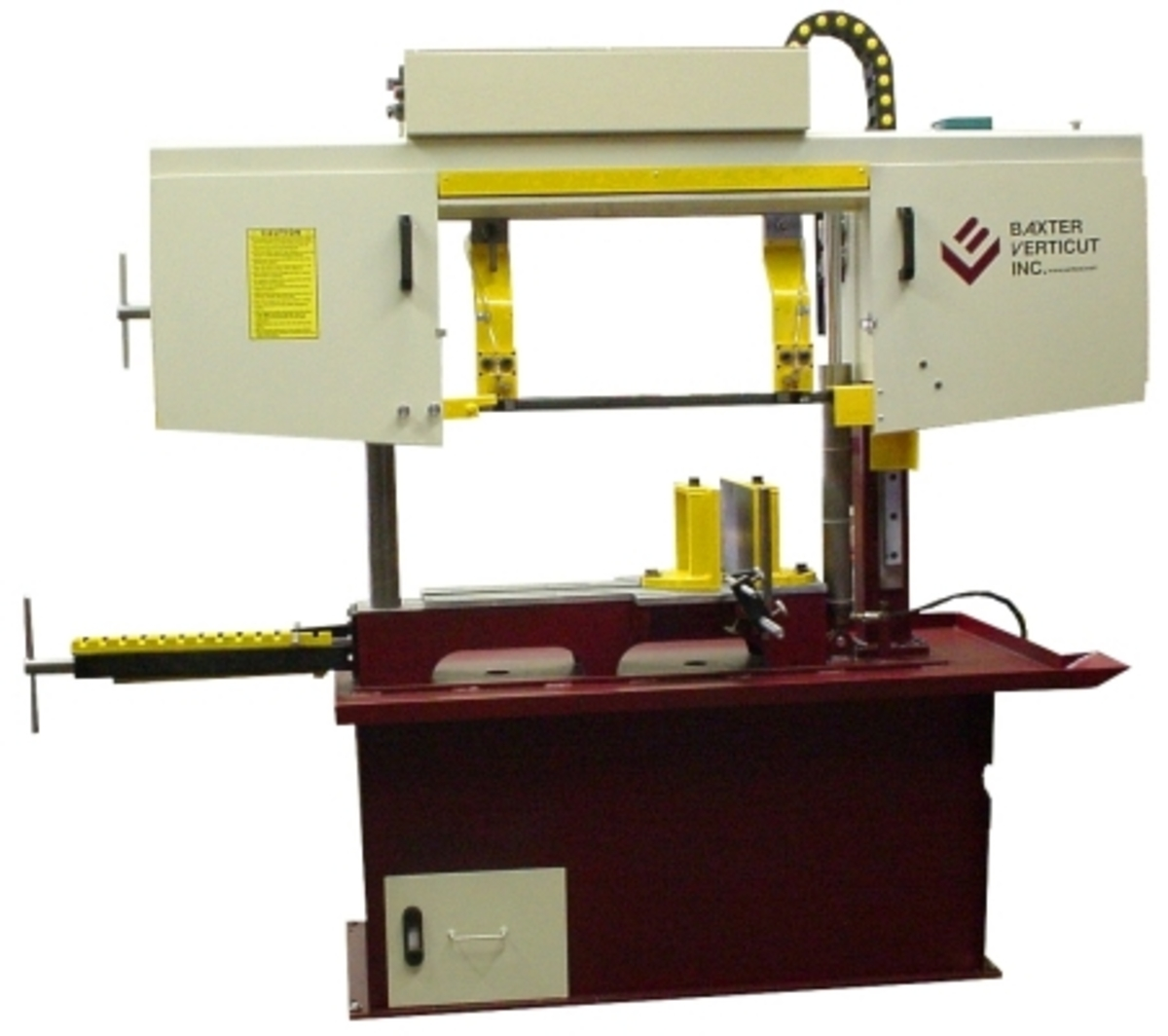

SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 360SA is a rigid double column bandsaw machine with a large 14” (360mm) x 19” (480mm) capacity.
The machine has hydraulic head lift and a semi-automatic cut cycle. Machine uses economical 1” blade and has a 2 hp (1.5 kW) drive. Blade speed is set using a five-step pulley.
CUTTING CAPACITY
Round: 14″ (360mm)
Round at 45 degrees: 10 3/4″ (273 mm)
Rectangular: 14″ x 19″ (360 x 480 mm)
SPECIFICATIONS
Blade Size: 1″ x 13′ 6″ (27 x 4115 mm)
Blade Speeds: 80, 125, 180, 265, 400 ft/min (25, 38, 55, 81, 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (660 mm)
Maximum Work Load: 3,000 lb. (1350 kg)
Machine Weight: 1,400 lb. (636 kg)
Overall Dimensions: 7’ x 4′ x 6′ (2130x1220x1830 mm)
DRIVE
Blade Drive: 2 Hp (1.5 kW)
Hydraulic Drive: 1 Hp (.75 kW)
Voltages available (three phase): 575, 460, 230 and 208
