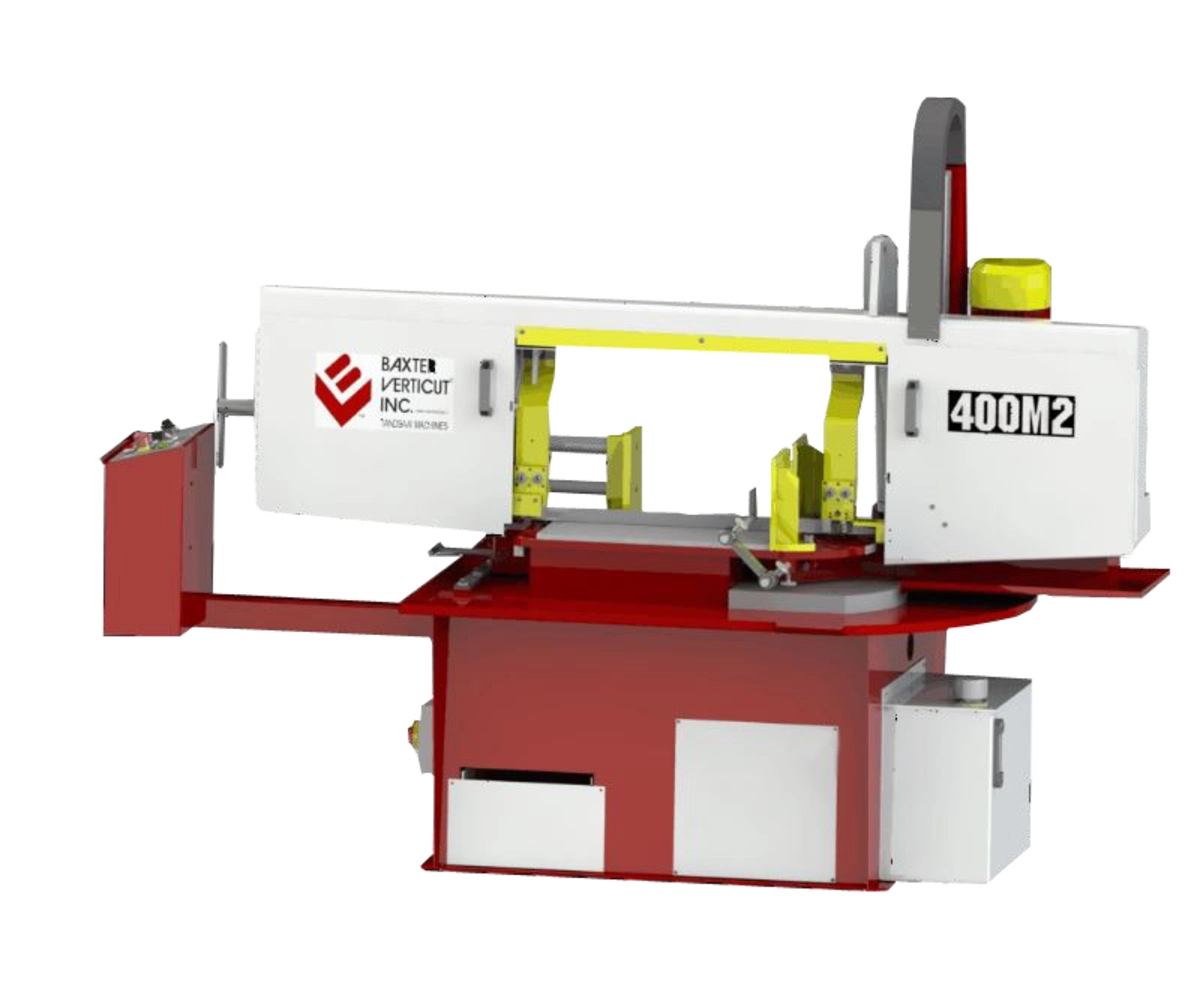

DOUBLE MITER HORIZONTAL BANDSAW
CUTTING CAPACITY
Round at 90 degrees: 16″ (400 mm)
Rectangular at 45 degrees: 15″ (380 mm)
Rectangular at 60 degrees: 10 1/2″ (265 mm)
Rectangular at 90 degrees: 21″w x 12 3/4″h (530 x 400 mm)
Rectangular at 45 degrees: 15″w x 10 1/2″h (380 x 320 mm)
Rectangular at 60 degrees (maximum height): 10 1/2″w x 10 1/2″h (365 x 365 mm)
Rectangular at 60 degrees (maximum height): 7 3/4″w x 16″h (195 x 400 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 14’6″ (34 x 4450 mm)
Blade Speeds (ft/min): 60 to 400 (18 to 122 m/min)
Blade Tension (spring compensated): 25,000 psi
Table Height: 30 5/8″ (775 mm)
Maximum Work Load: 3,000 lb. (1350 kg)
Machine Weight: 2,150 lb. (980 kg)
Overall Dimensions: 96″ x 43″ x 72″ (2440 x 1100 x 1830 mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 2 Hp (2.25 kW)
Voltages Available (three phase): 575, 460, 130/60 Hz
