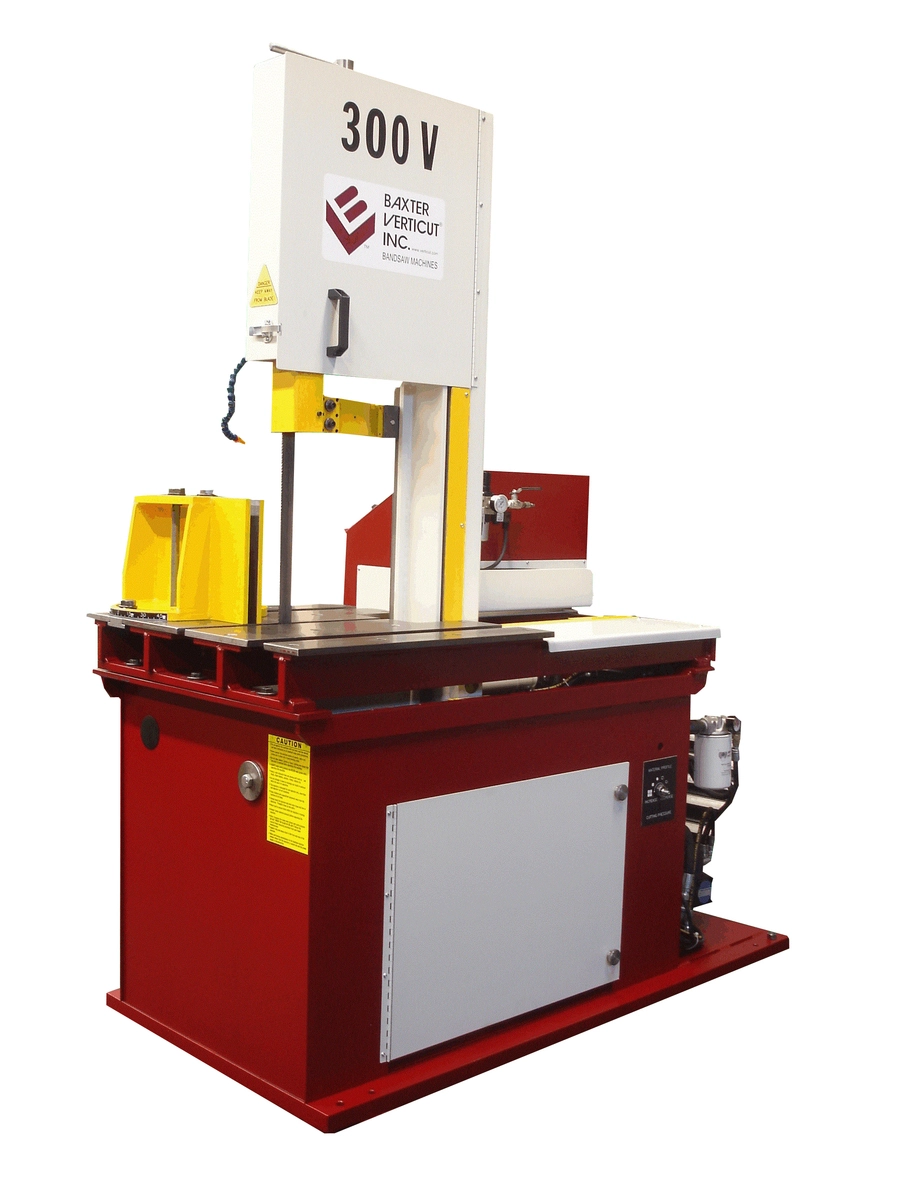

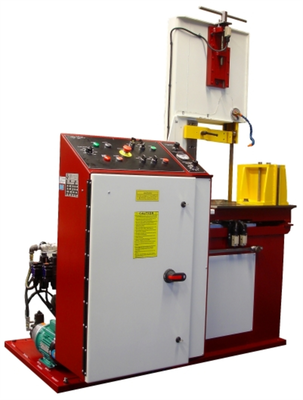

VERTICAL BANDSAW
CUTTING CAPACITY
Round: 12″ (300 mm)
Rectangular: 12″ x 14″ (300 x 360 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 14’6″ (32 mm x 4420 mm)
Blade Speeds (ft/min): 60 to 400 (18 to 122 m/min)
Blade Tension: 25,000 psi (172 MPa)
Table Height: 36″ (890 mm)
Maximum Work Load: 3,000 lb (1360 kg)
Machine Weight: 1,900 lb (861 kg)
Overall Dimensions: 99″ x 48″ x 80″ (2514 x 1219 x 2032 mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 2 Hp (1.5 kW)
Voltages Available (single phase): 230, 460, 575 Volts, 3 phase
