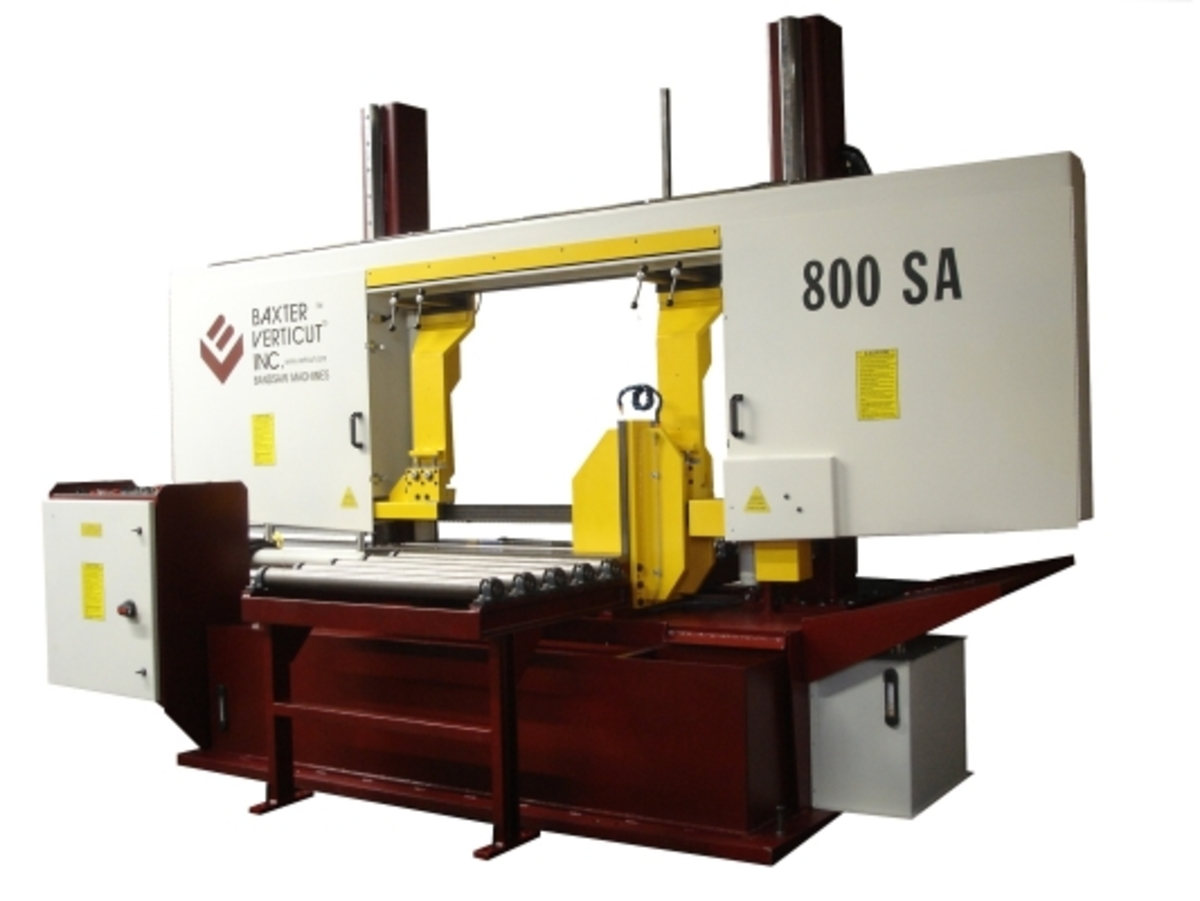

SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 800SA is a large capacity machine designed for cutting solids. The machine uses a 2⅝” (67mm) blade.
The blade drive is a heavy-duty high torque, planetary-style gearbox.
The motor is mounted directly on the gearbox eliminating the use of belts.
CUTTING CAPACITY
Round: 32″ (810 mm)
Square: 32″ (810 mm)
SPECIFICATIONS
Blade Size: 2 5/8″ x 26′ 6” (67 x 8077 mm)
Blade Speeds: 60 to 340 ft/min (18 to 104 m/min)
Blade Tension (hydraulic): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 27″ (686 mm)
Maximum Work Load: 7,500 lb. (3400 kg)
Machine Weight: 6,500 lb. (2950 kg)
Overall Dimensions: 155”x82”x98”(3937x2080x2490mm)
DRIVE
Blade Drive: 10 Hp (15 kW)
Hydraulic Drive: 3 Hp (2.25 kW)
Voltage (three phase): 460, 575
