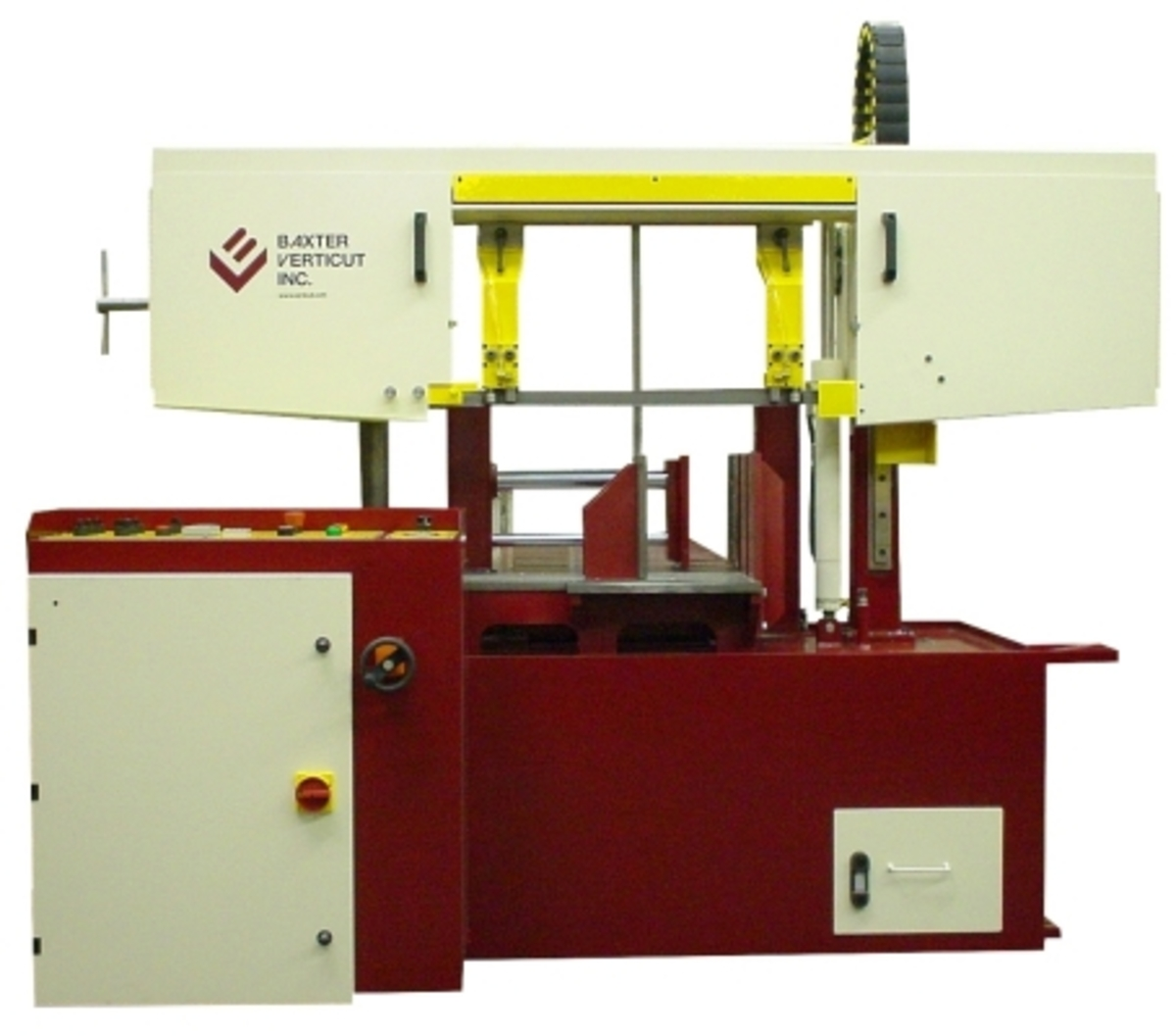

The model 360HFA is a fully automatic bandsaw. Material is fed via a hydraulically driven shuttle mounted on linear bearings.
The machine is equipped with a 1¼” (34mm) blade and driven by a 5 hp (3.75 kW) motor. Material shuttle stroke is 19” (480mm) with a four times multiplier.
CUTTING CAPACITY
Round: 13″ (360 mm)
Rectangular: 13″ x 18″ (360 x 460 mm)
SPECIFICATIONS
Blade Size: 1 1/4″ x 14′ 6″ (34 x 4420 mm)
Blade Speeds (continuously variable): 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated): 30,000 psi (207 MPa)
Blade Guides: Carbide with rollers
Table Height: 26 1/4″ (660 mm)
Maximum Work Load: 5,600 lb. (2545 kg)
Machine Weight: 2,600 lb. (1180 kg)
Overall Dimensions: 88”x80”x70”(2235x2030x1780 mm)
DRIVE
Blade Drive: 5 Hp (3.75 kW)
Hydraulic Drive: 2 Hp (1.5 kW)
Voltages available (three phase): 575, 460, 230 and 208
