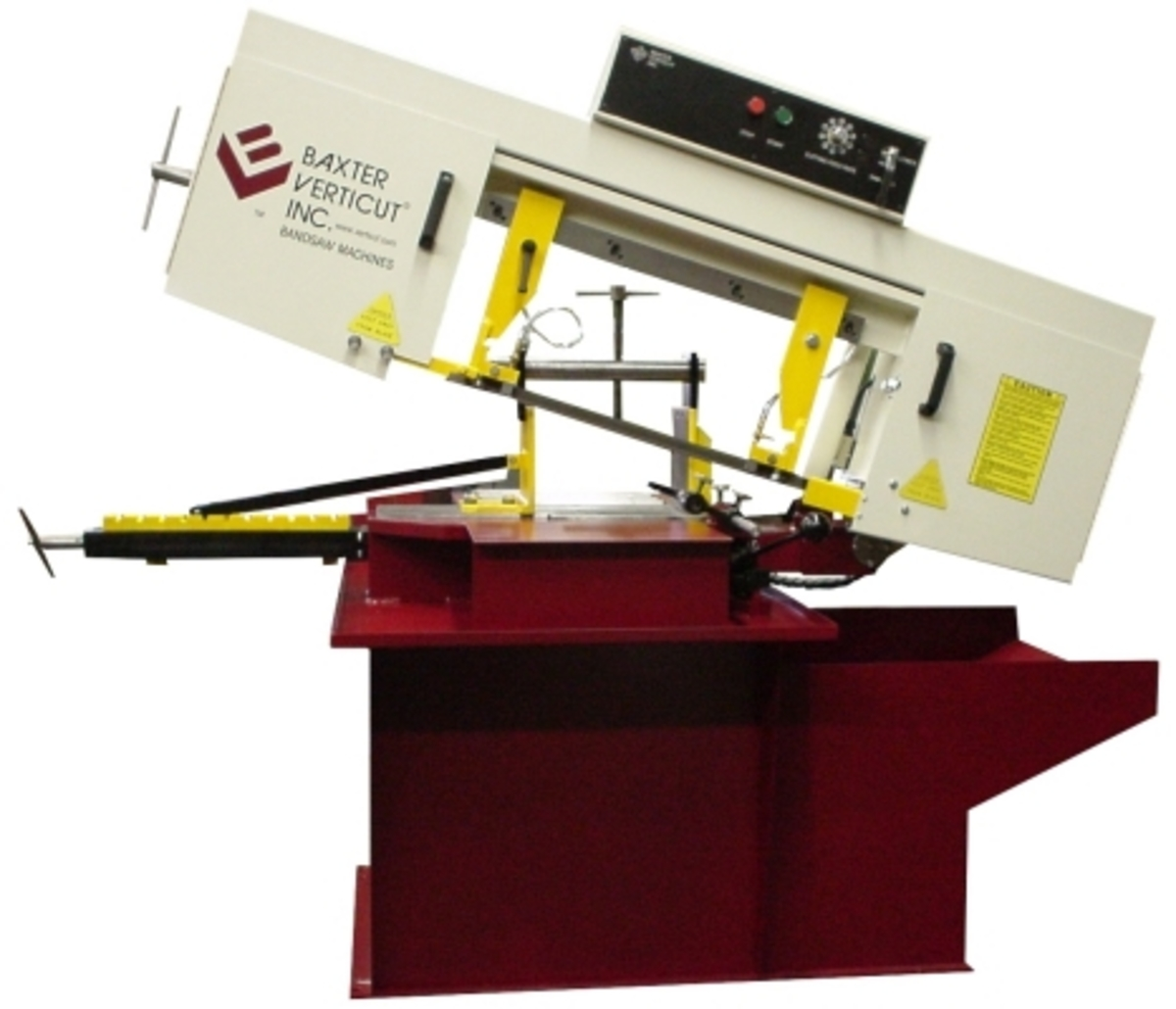

HORIZONTAL MITERING BANDSAW
The model 280M is able to miter cut up to 45 degrees by swinging the saw head.
The machine is a general-purpose bandsaw designed for fabricators to cut angles by mitering the saw head.
CUTTING CAPACITY
Round at 90 degrees: 11″ (280 mm)
Round at 45 degrees: 10″ (254 mm)
Rectangular: 9″ x 16″ (230 x 406 mm) 11” X 14” (280 x 356 mm)
SPECIFICATIONS
Blade Size: 1″ x 12′ (27 x 3660 mm)
Blade Speeds: 70, 110, 170, 250, 370 ft/min (21, 34, 52, 76, 112 m/min)
Blade Tension (spring compensated): 28,000 psi (193 MPa)
Blade Guides: Carbide with rollers
Table Height: 30 3/4″ (780 mm)
Maximum Work Load: 3,000 lb.(1360 kg)
Machine Weight: 1,350 lb.(614 kg)
Overall Dimensions: 78”x46”x57” (1980 x 1170 x 1450 mm)
DRIVE
Blade Drive: 2 Hp (1.5 kW)
Power Requirements: 575/3/60
