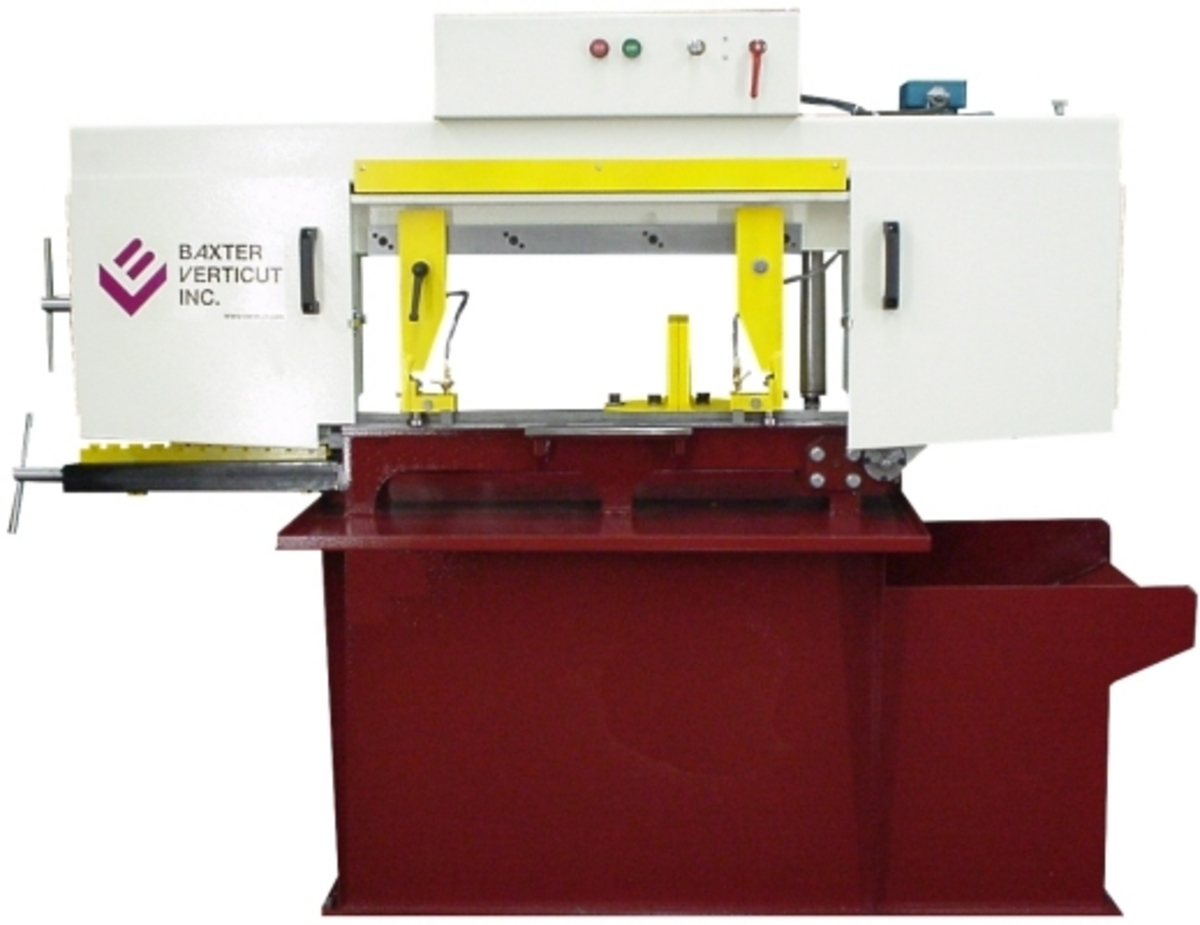

HORIZONTAL BANDSAW
The model 280S is a general-purpose utility bandsaw.
CUTTING CAPACITY
Round: 11″ (280mm)
Round at 45 degrees: 9″ (230 mm)
Rectangular: 9” x 16” (230 x 406 mm) 11” x 14″ (280 x 355 mm)
SPECIFICATIONS
Blade Size: 1” x 12’ (27 x 3660 mm)
Blade Speeds: 70, 110, 170, 250, 370 ft/min (21, 34, 52, 76, 112 m/min)
Blade Tension (spring compensated): 28,000 psi (193 MPa)
Blade Guides: Carbide with rollers
Table Height: 30 3/4” (780 mm)
Maximum Work Load: 3,000 lb. (1360 kg)
Machine Weight: 1,200 lb. (545 kg)
Overall Dimensions: 78”x30”x57” (1980x760x1450 mm)
DRIVE
Blade Drive: 2 Hp (1.5 kW)
Motor Starter: Magnetic Starter
Voltages available (three phase): 575, 460, 230 and 208
