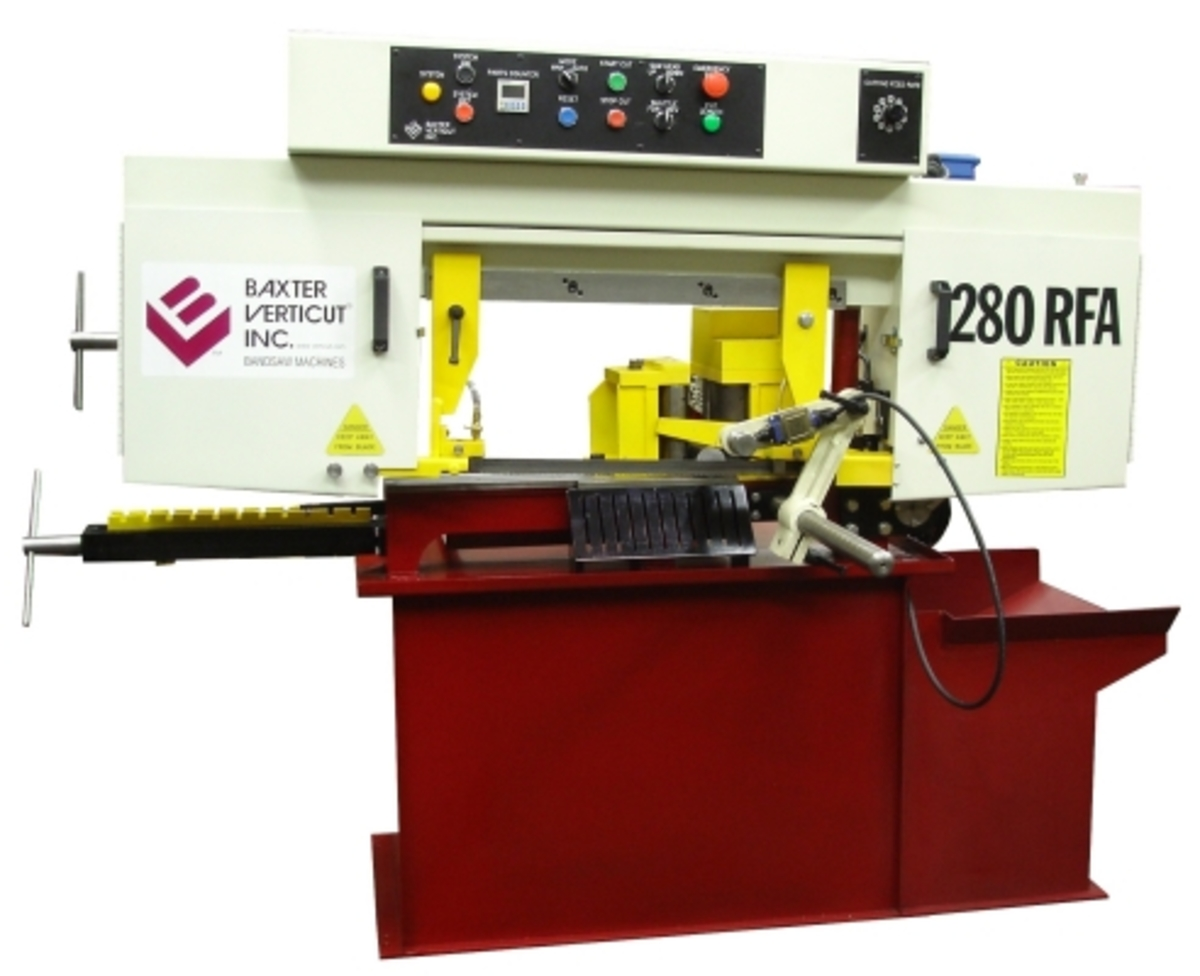

AUTOMATIC HORIZONTAL BANDSAW
Fully automatic roller feed type bandsaw machine.
The machine is an economical solution to repetitive sawing.
Machine comes standard with a conveyor, parts counter and out of material sensor.
CUTTING CAPACITY
Round: 11″ (280mm)
Rectangular: 9” x 16” (230 x 406 mm) 11” x 14″ (280 x 355 mm)
SPECIFICATIONS
Blade Size: 1” x 12’ (27 x 3660 mm)
Blade Speeds: 70,110,170,250,370 ft/min (21,34,52,76,112 m/min)
Blade Tension (spring compensated): 28,000 psi (193 MPa)
Blade Guides: Carbide with rollers
Table Height: 30 3/4” (780 mm)
Maximum Work Load: 3,000 lb. (1360 kg)
Machine Weight: 1,400 lb. (636 kg)
Overall Dimensions: 78”x30”x57” (1980x760x1450 mm)
DRIVE
Blade Drive: 2 Hp
Hydraulic Drive: 1 Hp
Roller Drive: 1/4 Hp
Voltages available (three phase): 575, 460, 230 and 208
