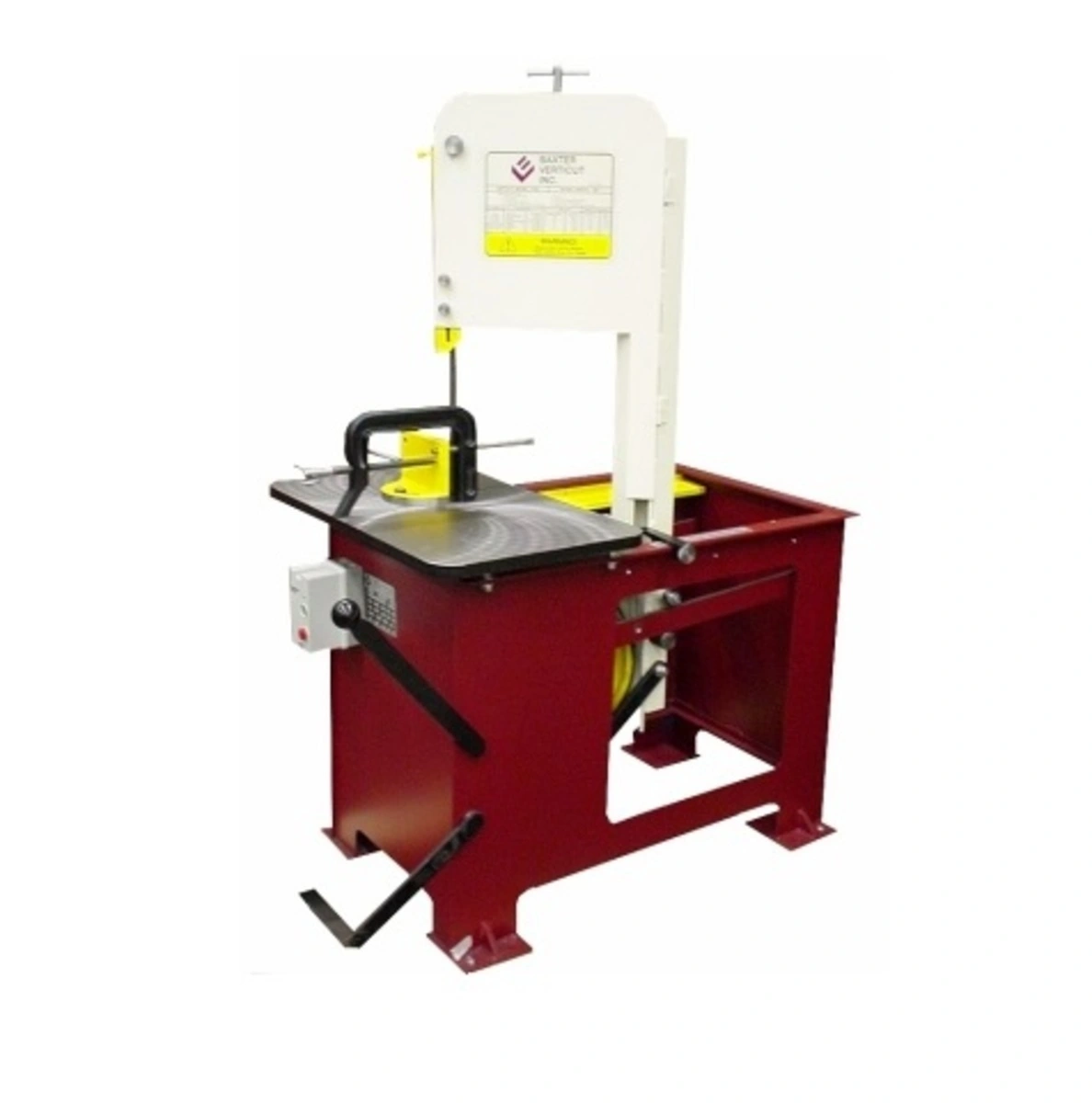

GENERAL PURPOSE BANDSAW
The strength of the model 115C is its versatility.
The machine can cut off material, notch blocks,
miter cut, scroll work and rip material lengthways.
CUTTING CAPACITY
Round: 10″ (250 mm)
Round with maximum 8 1/2″ (216 mm) length: 13″ (330 m)
Round at 45 degrees: 7″ (180 mm)
Rectangular: 10″ x 13″ (250 x 330 mm)
Rip cutting width: 9″ (230 mm)
SPECIFICATIONS
Blade size: 1/4″ to 3/4″ x 10′ (6 to 19 mm x 3050 mm)
Blade speeds: 75, 130, 215, 350 ft/min (23, 40m 66, 107 m/min)
Blade tension: 30,000 psi
Table height: 33″ (840 mm)
Work table (ground solid steel): 1″ x 18″ x 30″ (24 mm x 460 mm x 760 mm)
Machine Weight: 1,000 lb. (455 kg)
Overall dimensions: 34″ x 48″ x 68″ (860 mm x 12250 mm x 1730 mm)
DRIVE
Blade drive: 3/4 Hp (.56 kW)
Motor starter: Manual
Voltage available: 115 Volts
