FEATURES
5HP 3PH 220V 60HZ Motor
Wired 220V. CSA Elec. & Wires
Head Swivel: L 45/90-deg. R 30-deg
Hydraulic Pump Motor: 2HP
Clamping Vise
With Movable Guard
1/8HP Coolant Pump

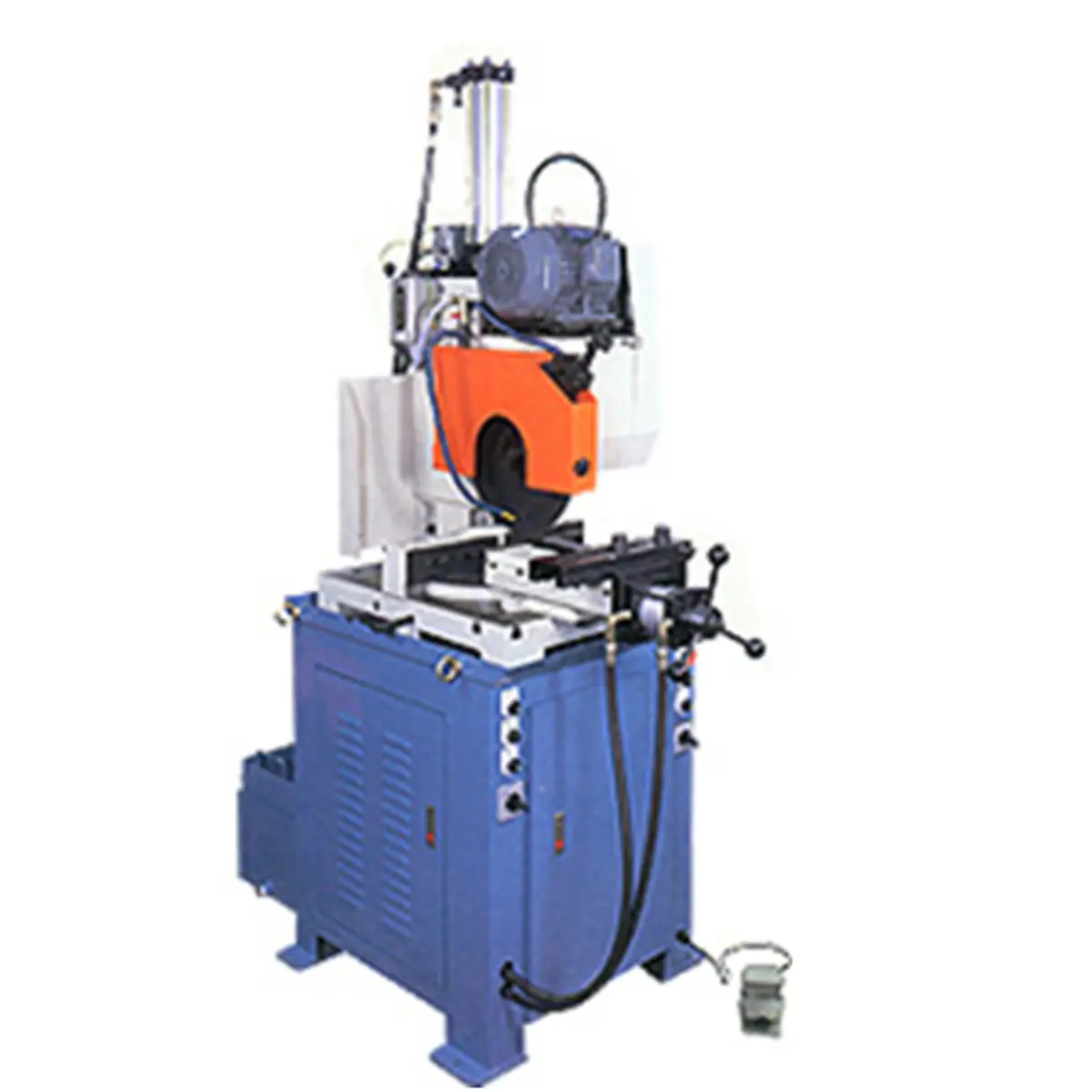

ITEM: FHC-425SA
MAIN DRIVE MOTOR: A: 5HP / 3HP 2/4 pole (std.) --- Low 50HZ / 60HZ 70 / 35 rpm High 50HZ / 60HZ 120/60 rpm
Blade Speeds: B: 3HP 6 pole (opt.) --- 50 HZ 35/20 rpm --- 60 HZ 42/23 rpm
Head Swivel: L45° 90° R30°
Clamping Vise: Single
Coolant Pump Motor: 1/8 HP 40W
Saw Blade Size: HSS 250- 425 Standard 350 Diameter (mm)
Bore (mm): 32
Pin Holes (mm): 2x 11xPCD 63
Hydraulic Pump Motor: 2 HP 4P
Operation Pressure: 20-30 kg/cm2
Machine Dimensions (LxWxH): 1300x1400x1900 (mm)
Packing Dimensions (LxWxH): 1460x820x2230 (mm)
(inch): 58"x33"x88"
Net Weight: 650 kgs (1430 lbs)
Gross Weight: 850 kgs (1870 lbs)
