The chip tray stand is jointed with saw base.
It can swivel with saw bow and no need to move the workpiece.
Fully adjustable hydraulic downfeed controls the rate of descent
Control panel installed on top of saw bow for more convenient operation
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed
Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock
Bearing carbide guide enhances cutting stability and extends the blade life
Stand jointed with water pan for collecting chips and water
Cleaning hose and nozzle assist in washing chips away
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
CSA Electrics

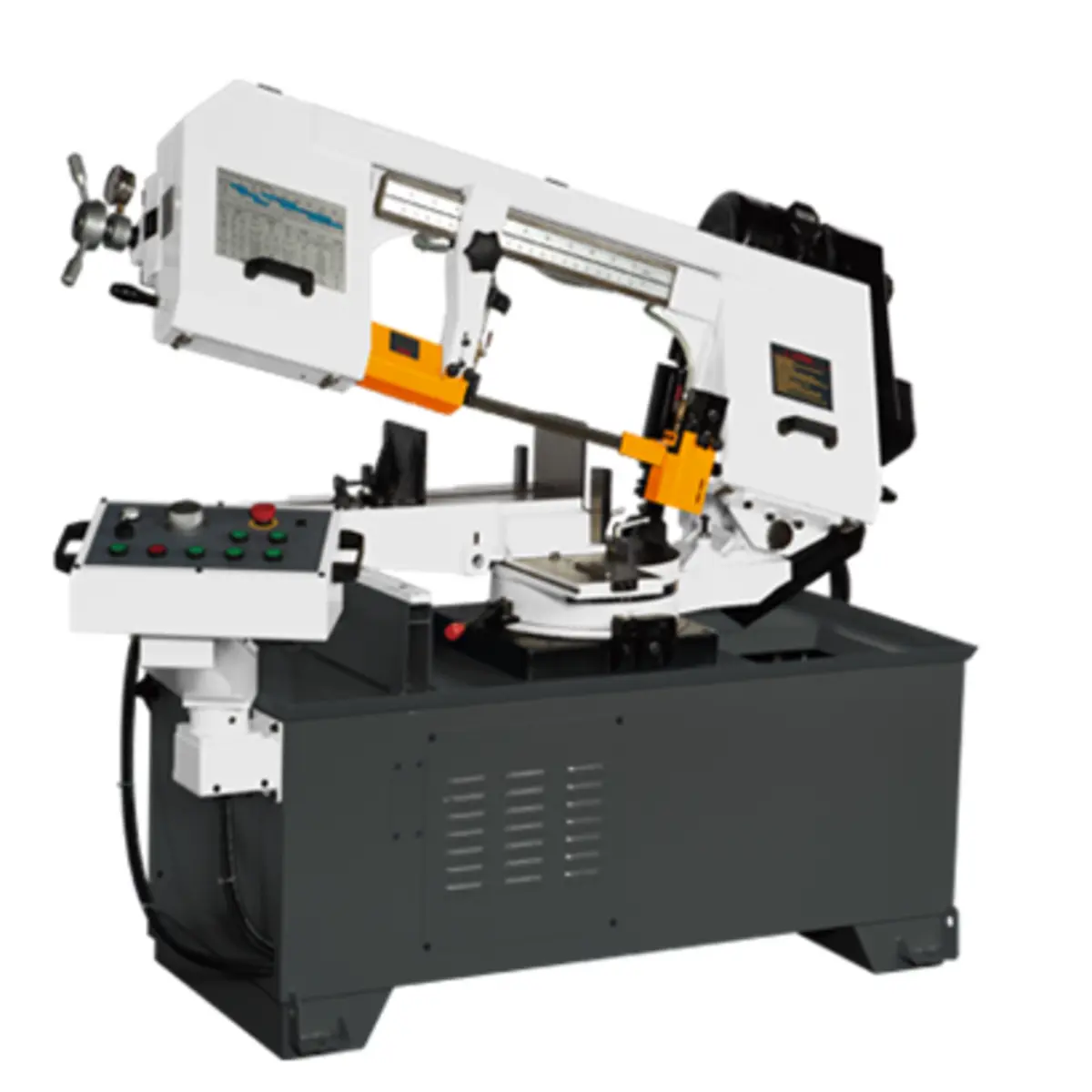

ITEM: RF-250N UNIT
MAIN MOTOR: 2HP 3PH
SPEED: 60HZ / 30~120 ,50HZ / 25~100 Mt/min
Ft/min: 60HZ / 98~393 , 50HZ / 81~327
SAW BLADE: 27 x 0.9 x 3352 mm (WxTxL)
inch (WxTxL): 1.06 x 0.035 x 132
MACHINE DIMENTIONS: 1930 x 700 x 1524 mm (LxWxH)
inch (LxWxH): 76 x 27.5 x 60
WEIGHT: 530 / 570 kgs NW/GW
1165 / 1255 lbs
PACKING DIMENSIONS: 1900 x 940 x 1460 mm (LxWxH)
inch (LxWxH): 75 x 37 x 58
