New type one-piece stand cooperated with swivel control box for very convenient operation
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed
Enlarged hydraulic cylinder and buffer spring enhance the cutting stability
Tungsten blade guide helps to maintain the cutting stability and extend the blade life
Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock
Cleaning hose and nozzle assist in washing chips away
Coolant system for wet cutting
With Bi-metal blade, chip brush and length stop set
Optional selection includes laser indicator and hydraulic tension meter
Professional semi-auto hydraulic system can make a perfect cutting cycle with lifting the saw bow to certain height and cutting down

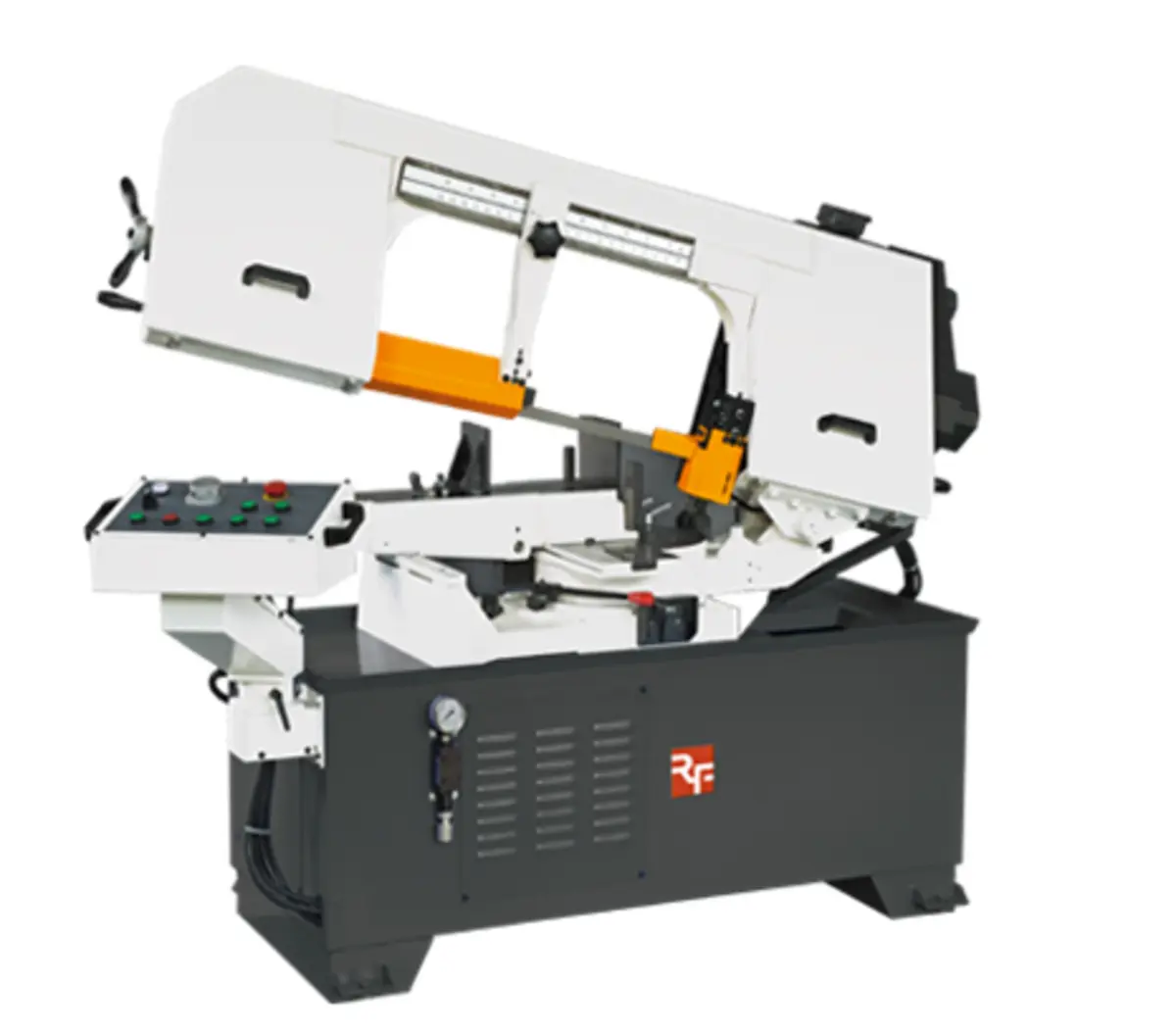

ITEM: RF-330NA UNIT
Main Motor: 2 HP
Speed: 60HZ / 30~120 Mt/min
Ft/min: 50HZ / 25~100
Saw Blade: 27x 0.9 x 3810 mm (WxTxL)
inch (WxTxL): 1.06 x 0.035 x 150
Machine Dimentions: 2030 x 1315 x 1425 mm (LxWxH)
inch (LxWxH): 80 x 51.7 x 56.1
Weight: 610 / 650 kgs NW/GW
1345 / 1390 lbs
PACKING DIMENSIONS: 2120 x 940 x 1515 mm (LxWxH)
inch (LxWxH): 83.5 x 37 x 60
