Standard Features:
Shuttle Type Automatic Feed
3pcs Carbide blade guide system
Present cut-counter with shut-off
Power Driven Blade Brush
Nesting fixture for bundle cutting
Infinitely variable speed controlled by inverter
Hydraulic Blade Tension
PLC control for all electronic and Hydraulic functions
Work light
Automatic Chipping Conveyor
Lead Screw
LED Display of Blade Speed
Check Device of Saw Blade Breaking
Flushing Hose for Machine Cleaning
Multiple Index (9 times)
Automatic Work Height Control and Fast Approach
Split Front Vise
Floating Shuttle Vise
2 M Roller Table
One Bi-Metal Saw Blade
Tool Box

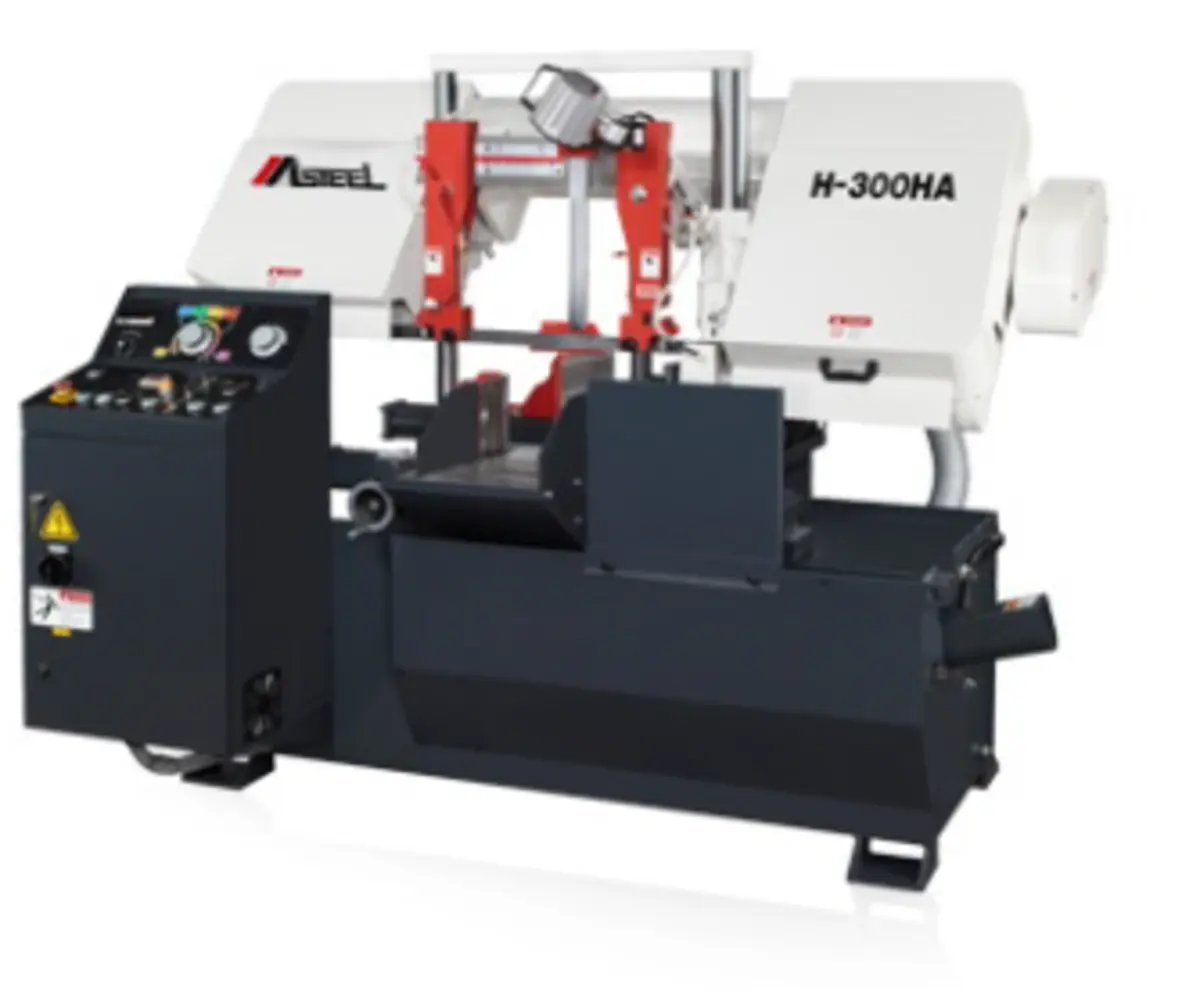

Specifications: H-300HA
Capacity
Round Bar: Dia. 300mm
Square Bar: 300x300mm
Blade size: 3920x34xT 1.1mm
Blade Speed: 20-100m/min. inverter
Blade Motor: 5HP 3PH
Hydraulic Pump: 1HP
Coolant Pump: 1/8 HP
