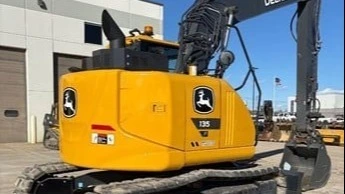

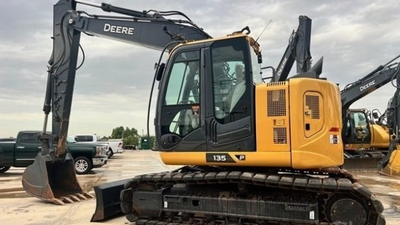

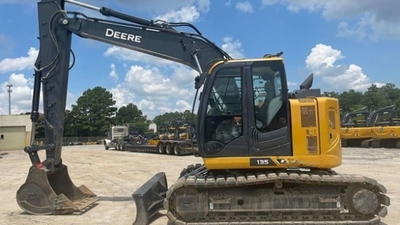

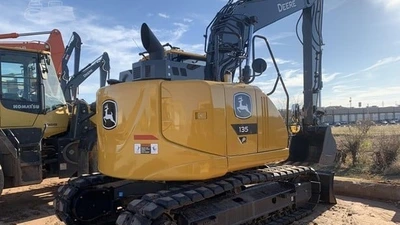

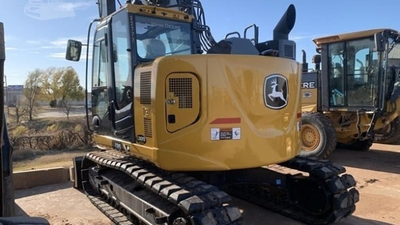

Cab, A/C, Heat, Blade, 20", 24", 28", 36", 42" Buckets w/Teeth |The John Deere 135 P Tier Is A Reduced Tail Swing Excavator Powered By An Isuzu 4 Cylinder Engine Delivering 101 Horsepower. Operating Weight Ranges Between 31,526 And 33,951 Pounds Depending On Configuration. Maximum Dig Depth Is 19 Feet 8 Inches With A Maximum Digging Reach Of 29 Feet And A Dump Height Of 23 Feet 8 Inches. Bucket Breakout Force Is 23,380 Pounds And Arm Tearout Force Is 13,710 Pounds. The Machine Uses A 24 Inch Track Shoe With An Undercarriage Width Of 8 Feet 6 Inches And A Ground Clearance Of 16 Inches. Transport Height Measures 9 Feet 5 Inches With A Tail Swing Radius Of 4 Feet 11 Inches. Travel Speed Reaches 3.4 Miles Per Hour, Swing Speed Is 13.3 RPM, And Total Hydraulic Flow Is 56 Gallons Per Minute. Fuel Capacity Is 58 Gallons And Hydraulic Tank Capacity Is 15.9 Gallons. Key Features Include A Reduced Tail Swing Design For Tight Job Sites, Optimized Visibility With Optional Camera Systems, Proportional Auxiliary Hydraulics For Attachments, And An Emission System Using SCR With No DPF Or Regen Cycles.
| Weight | 33951.0 | 33951.0 |
Status: Available
Weight: 33951.0
Rental Rate: $5391
Rate Schedule: DAY: $720
Rate Schedule: WEEK: $2042
Rate Schedule: 3 MOS: $16173
Rate Schedule: 6 MOS: $32346
