STANDARD FEATURES AND ACCESSORIES
D1-11 Spindle nose, 4" spindle bore
4 step gear change, 1600RPM spindle speed
15HP AC spindle motor
8 position hydraulic turret
Over-size cross slide preparing for 2nd tool post
16" WIDE BED
Auto Lubrication System
Coolant System
Fully enclosure
Chip conveyor
12" 3 jaw chuck
18" 4 jaw chuck
14" steady rest
Tailstock Center
Tool Box with Tools
Work Light
Operation & Service Manual

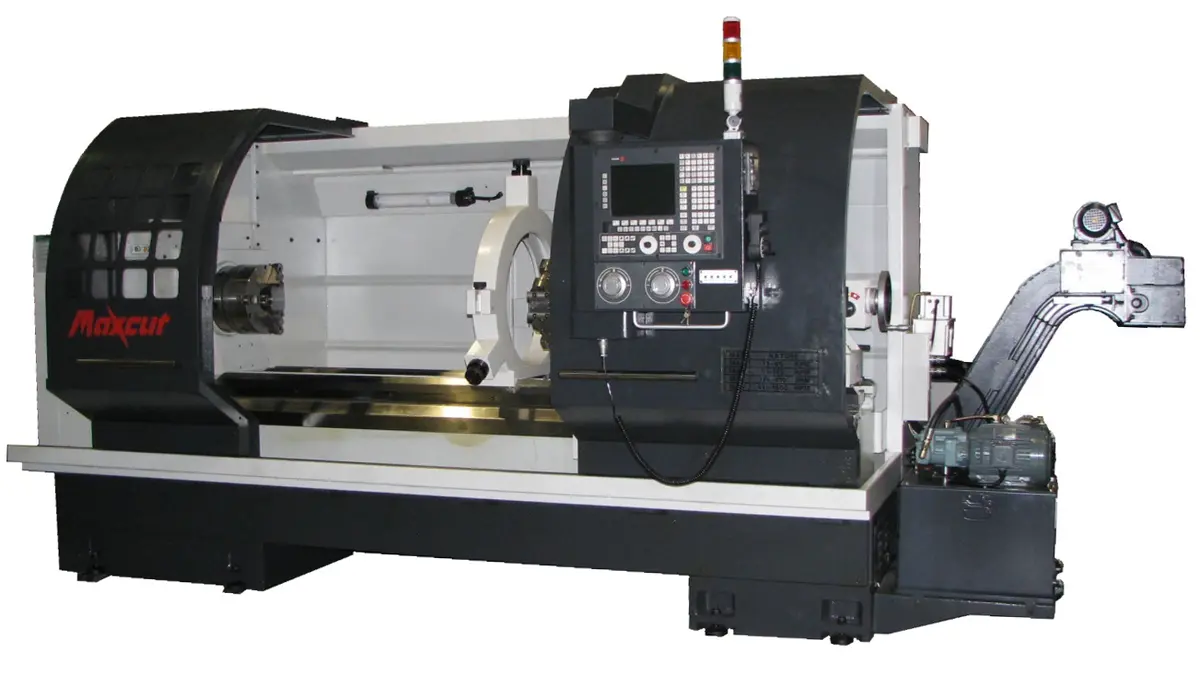

MODEL: MLNC-2280MD-4
[CAPACITY]
Swing over Bed: 560 mm (22")
Swing over Cross Slide: 280 mm (11")
Distance Between Centers: 1500mm(60"), 2000mm(80"), 3000mm(120")
[BED]
Width of Bed: 400 mm (16")
[SPINDLE]
Spindle nose mounting: D1-11
Spindle bore: 104 mm (4")
Spindle speeds (4 Steps): 13-1600 rpm
[TREVAL AND FEED]
x-axis travel: 350 mm
z-axis travel: 1800mm (80")
X/Z axis Feed speed: 0 - 5 m/min
Rapid Speed: 15m/min
Ball screw diameter: X-axis: 32 , Z-axis: 50
[HYDRAULIC TURRET]
Tool Position: 8
Tool size: 25 x 25 mm
Max boring bar diameter: 38mm (1-1/2")
[TAIL STOCK]
Tailstock quill diameter: 95 mm
Taper of center: MT#5
Quill travel: 230 mm
[MOTOR]
Main spindle motor: 15 HP
Coolant pump motor: 1/4 HP
[GENERAL]
POWER REQUEST: 30Amps @400V 3 phases
WEIGHT: 5080Kg (11,176Lbs)
DIMENSIONS: 5550x2270x2270mm (218" x 90" x 90")
