FEATURES
FAGOR 8055 control
30HP servo spindle motor
Heavy duty 4-way automatic turret or Manual quick change tool post
2 speed gear change on spindle
Steady rest: 40-350mm
Back splash guard with travelling door
Chip conveyor
20” 3 jaw chuck in front and back A2-15 spindle mounting
24” wide bed way
14,000Lbs heavy-duty structure frame
6,000Lbs capacity between centers
Spindle speed 60--800RPM

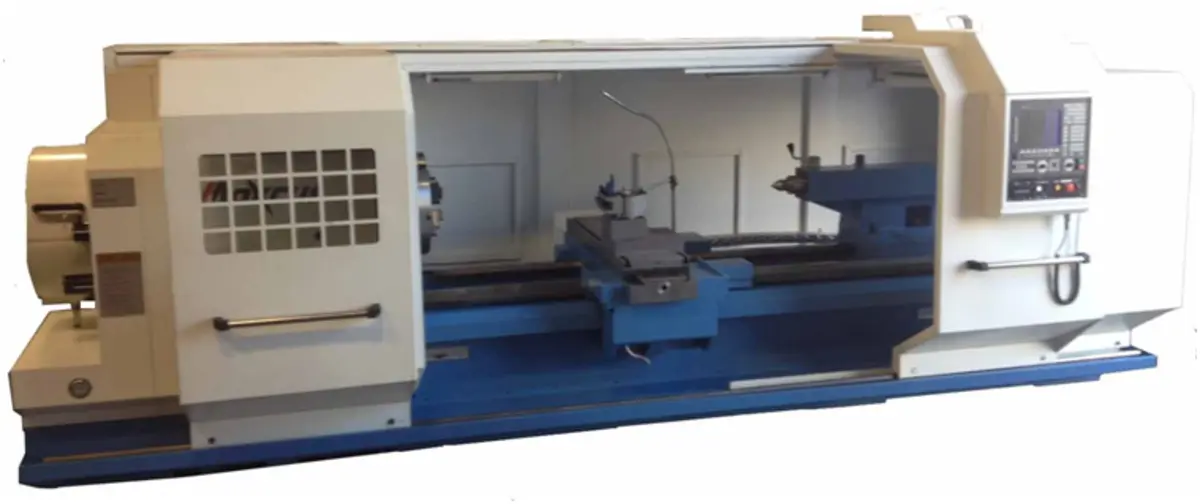

ITEM: 9/32120
CAPACITY UNIT
Swing over bed: 840 (33.00) Mm (in)
Swing over cross slide: 445 (17.50) Mm (in)
Max cutting diameter: 813 (32.00) Mm (in)
Max cutting length: 2800 (110.24) Mm (in)
Distance between centers: 3000 (120.00) Mm (in)
Bar capacity: 9.00 In
Steady rest: 40-350 (1.5-13.77) Mm (in)
Width of bed: 600 (23.622) Mm (in)
Load capacity(between centers): 2500 (5511.56) Kgs(lbs)
TRAVEL
X axis: 420 (16.5) Mm (in)
Z axis: 2800 (110.23) Mm (in)
SPINDLE
Spindle speed range: 60-800 rpm
Spindle bore: 240 (9.48) Mm (in)
Spindle power: 30 HP
Spindle mount: A2-15
Chuck size: 20” 3 jaw front 20” 4-jaw back in
TURRET
Number of tool stations: 4
Shank height: 40 x 40 (1.57 x 1.57) Mm (in)
FEEDRATE
X axis: 3 M/min
Z axis: 6 M/min
TAILSTOCK
Quill taper: 5 M.T.
Quill movement type: Manual
Quill stroke: 250 (9.84) Mm (in)
Quill diameter: 100 (3.937) Mm (in)
MACHINE SIZE
Power requirement: 75 KVA / 400 V
Machine length: 5600 (222.47) Mm (in)
Machine width: 2219 (87.36) Mm (in)
Machine height: 1830 (72.04) Mm (in)
Total machine weight: 7500 (16534.67) kg (lbs)
