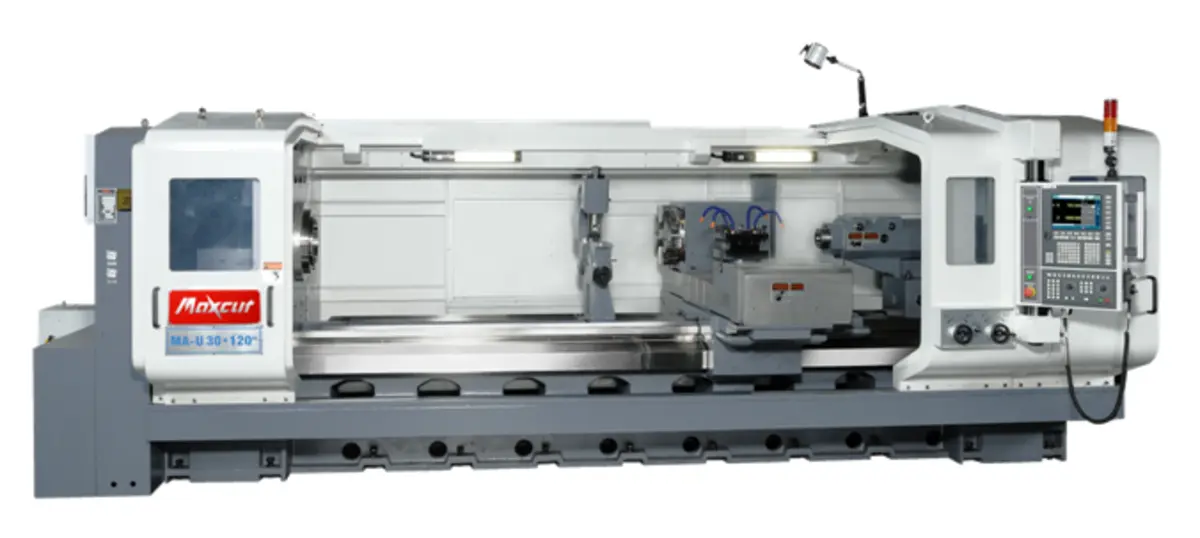

TWIN TURRET/ TWIN X AXIS CNC LATHE
FAGOR 8060 10.4" COLOR TFT-LCD SCREEN
22/33 KW SPINDLE MOTOR
SPINDLE SPEED 700RPM on 10" bore, 568RPM on 12" bore
4 step gear change spindle speed for heavy duty jobs
5.2KW X-AXIS SERVO MOTOR 5.2KW Z-AXIS SERVO MOTOR+ 1:4 Plenty Gear Reducer
SPINDLE BORE 10"/12",
SPINDLE NOSE A2-15/A2-20
BED WIDTH 510MM (20")
Twin X axis for higher productivity.
Twin turret-H4-250 heavy duty hydraulic 4 position turret;
V8-100 8 position hydraulic turret
24" AMERICAN 4-JAW CHUCK (DIRECT MOUNTED) (TWO PIECE JAW TYPE)
25" Bison 3-JAW SCROLL CHUCK DIRECTLY MOUNT (TWO PIECE JAW TYPE)
SPECIALY DESIGNED C-TYPE STEADY REST CAPACITY: ¢30-300mm (QUILL DIAMETER 80mm)
TAILSTOCK QUILL: 4" /105mm QUILL AND MOVEDS BY HAND WHEEL
TAILSTOCK BODY MOVES: BY CARRIAGE
FULL GUARDING REAR CHIP CONVEYOR, ONE CHIP CART
Z-AXIS BALL SCREW :63MM
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
AIR CONDITIONER OF ELECTRIC CABINET
HALOGEN LIGHTS,
TOOLBOX & TOOLS
SPINDLE SLEEVE, SPINDLE CENTER, TAILSTOCK CENTER
Swing over bed: 34"(870mm)
Swing over cross slide: 20"(505mm)
Center height: 20"(505mm)
Bed width: 20" (510mm)
Spindle bore: 12"(305mm)
Spindle nose: A2-15/A2-20
Spindle speed: 4-568RPM
Spindle center: MT#6
Bed way: 3 V way with 1 flat way
Twin Turret: H4-250 heavy duty hydraulic 4 position turret V8-100 8 position hydraulic turret
Tool size: 1-1/4" (32mm)
X1/X2 axis traverse: 20"(505mm)
Z axis traverse: 200"(5000mm)
X1/X2 axis rapid traverse: 6M/min
Z axis rapid traverse: 6M/min
Tailstock quill diameter: 4"(105mm)+Live center(MT#6)
Tailstock quill traverse: 7.9" (200mm)
Tailstock center Taper: MT6
Tailstock body movement: Move by carriage
Tailstock quill movement: Manual
X1/ X2 axis servo motor: 5.2KW
Z axis servo motor: 5.2KW + 1:4 Plenty Gear Reducer
Spindle motor: 22/33KW
Lubrication pump - Carriage: Pressure-Relief Electric Lubricator 25W
Lubrication pump - Spindle: 1/4 HP PUMP
Coolant pump motor: 5 Bar
Hydraulic pump motor: 2HP
Chip Removing: Rear chip conveyor
Dimensions WxHxL: 9400mm (112" x 83" x 291"/370")
Weight: 16860kg(37,092Lbs)
