Horizontal / Multi-function

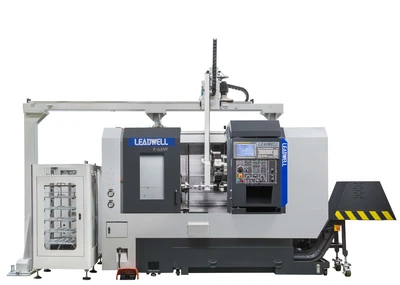

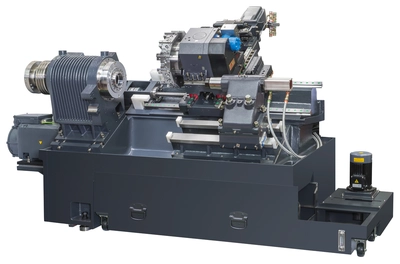

Item: T-7iS
Max. swing: 520(20.5) mm (in)
Max. turning diameter: 340(13.3) mm (in)
Max. turning length: 480(18.9) mm (in)
Bar capacity: 66 (2.6) mm (in)
X axis travel: 180+5 (7.08+0.2) mm (in)
Z axis travel: 480(18.9) mm (in)
Spindle speeds range: 4500 rpm
Spindle Chuck size: 8 in
Sub spindle Chuck size: 6
Turret: 12
