Horizontal / Multi-function

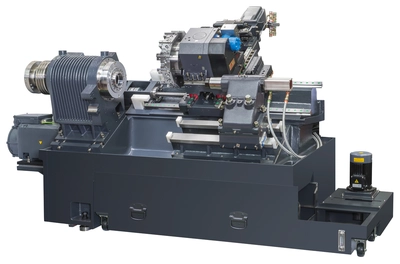

MODEL: T-6SMY
Max. swing: 450 (17.7) mm(in)
Max. turning diameter: 380 (14.9) mm(in)
Max. turning length: 458(18) mm(in)
Bar capacity: 52 (2) mm(in)
X axis travel: 190+15 (7.48+0.59) mm(in)
Y axis travel: ±50 (±1.96) mm(in)
Z axis travel: 450 (17.7) mm(in)
Z2 axis travel: 460(18.11)/--- mm(in)
Spindle speed: 6000 rpm
Chuck size: 152(6) mm(in)
Spindle nose: A2-5
Number of tool stations: 12 pcs
Shank height for square tool: 20 (0.78) VDI30 mm(in)
Shank diameter of boring bar: 32 (1.25) VDI30 mm(in)
X/Y/Z axis rapid traverse: 15/7.5/30 (590/295/1181) m/min (ipm)
X/Y/Z axis motor: 1.6 (2.1) kw (hp)
Machine size (LxWxH): 3014x2060x2000 mm
Machine weight: 4600 kg
