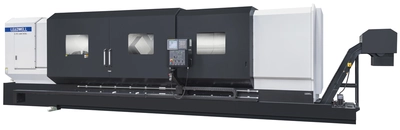

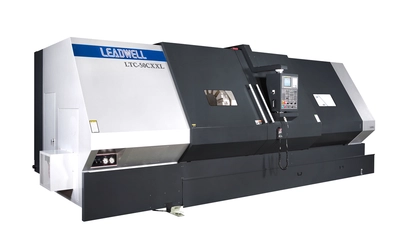

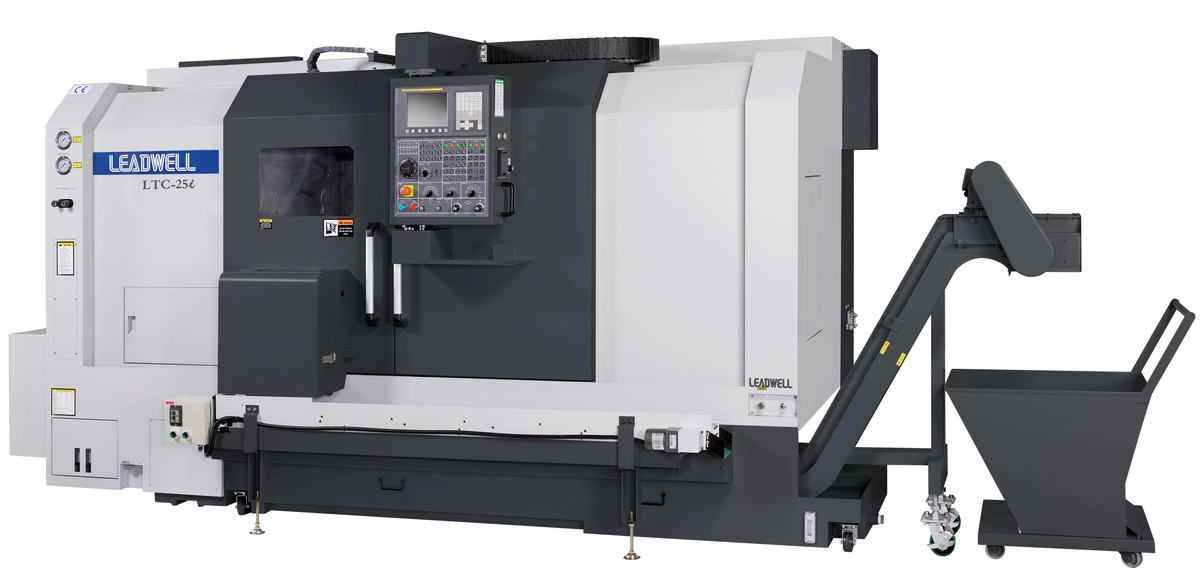

LTC-30M/LM/XLM/XXLM/LVM
Overview
Description
Horizontal / Heavy Duty
Specifications
MODEL: LTC-30M/LM/XLM/XXLM/LVM
Max. swing: 800 (31.5) mm(in)
Max. turning diameter: 494 (19.4) mm(in)
Max. turning length: 1030/1530/2030/3006/4006 (40.6/60.2/79.9/118.3/157.7) mm(in)
Bar capacity: 115 (4.5) mm(in)
X axis travel: 344+10 (13.5+0.39) mm(in)
Z axis travel: 1100(43)/1600(63)/2100(83)/3100(122)/4100(161) mm(in)
Y axis travel: - mm(in)
Spindle speed: 10-2000 rpm
Chuck size: 381 (15) mm(in)
Spindle nose: A2-11
Number of tool stations: 12 pcs
Shank height for square tool: 32(1.25) VDI60 / 25(1) BMT 75 OPT mm(in)
Shank diameter of boring bar: 50 (2) VDI 60 / BMT 75 OPT mm(in)
X axis rapid traverse: 15 (591) m/min(ipm)
Z axis rapid traverse: 20(787.4)/20(787.4)/20(787.4)/12(472)/10(393.7) m/min(ipm)
Y axis rapid traverse: - m/min (ipm)
X/Z/Y axis motor: 4/7/- (5.4/9.3/-) kw (hp)
Machine size (LxWxH): (4380/4880/5380/6500/7880)x2120x2310 mm
Machine weight: 10000/11000/12000/17000/19500 kg
