Vertical / Heavy Duty High Production

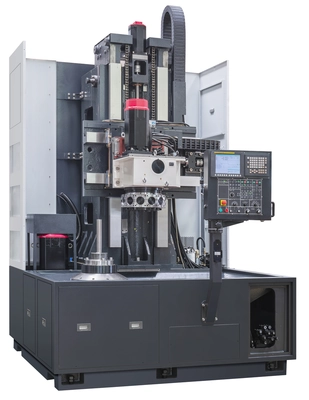

MODEL: VTL-800M
Max. swing: 900 (35.4) mm(in)
Max. turning diameter: 800 (31.5) mm(in)
Max. turning length: 760 (30) mm(in)
Max. workplace weight: 2000 kg(lb)
X axis travel: 410+20 (16.1+0.78) mm(in)
Z axis travel: 760 (30) mm(in)
Chuck size: 457 (18) mm(in)
Spindle speed: 2000 rpm
Spindle nose: A2-11
Number of tool stations: 12 pcs
Shank height for square tool: 25 (1) BMT75 mm(in)
Shank diameter of boring tool: 50 (2) BMT75 mm(in)
Rapid rate (X-Axis): 20 m/min(ipm)
Rapid rate (z-Axis): 20 m/min(ipm)
X/Z/Y axis motor: 4/7 (5.4/9.4) kw (hp)
Machine size (LxWxH): 3560x2330x3850 mm
Machine weight: 13700 kg
